BP2863XJ - Buck Offline LED Driver

BPS

📥 Download Datasheet

BP2863XJ Datasheet Preview — Preview of BP2863XJ PDF

Datasheet Details

Part number	BP2863XJ
Manufacturer	BPS
File Size	470.24 KB
Description	Buck Offline LED Driver
Datasheet	BP2863XJ-BPS.pdf

BP2863XJ Product details

Description

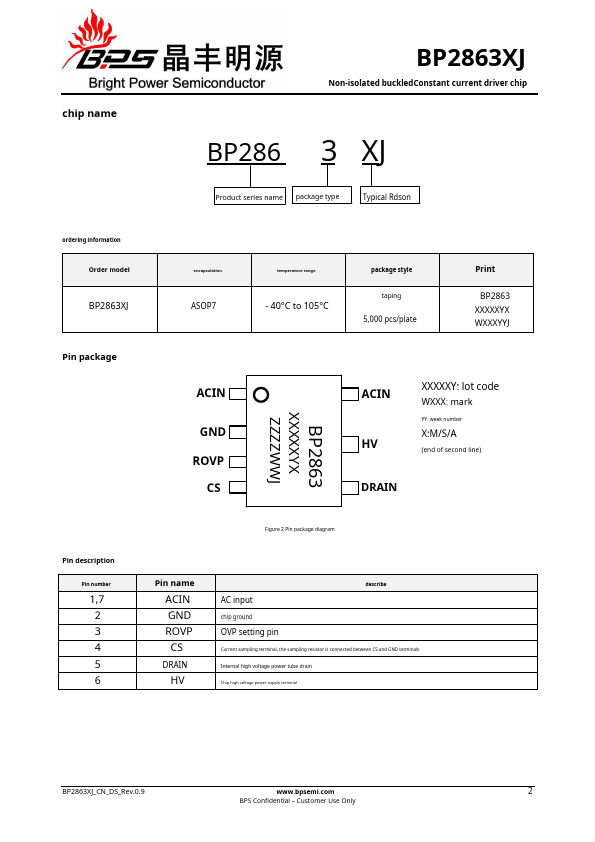

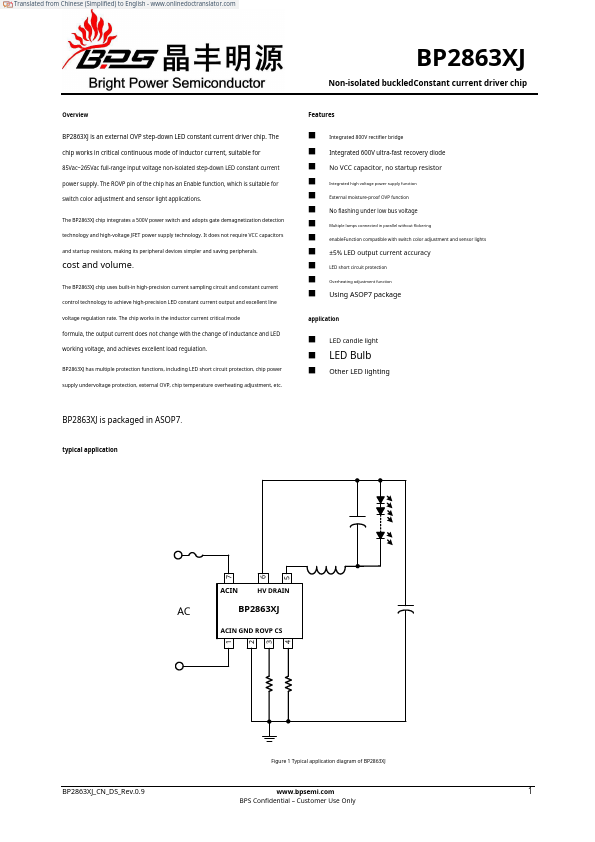

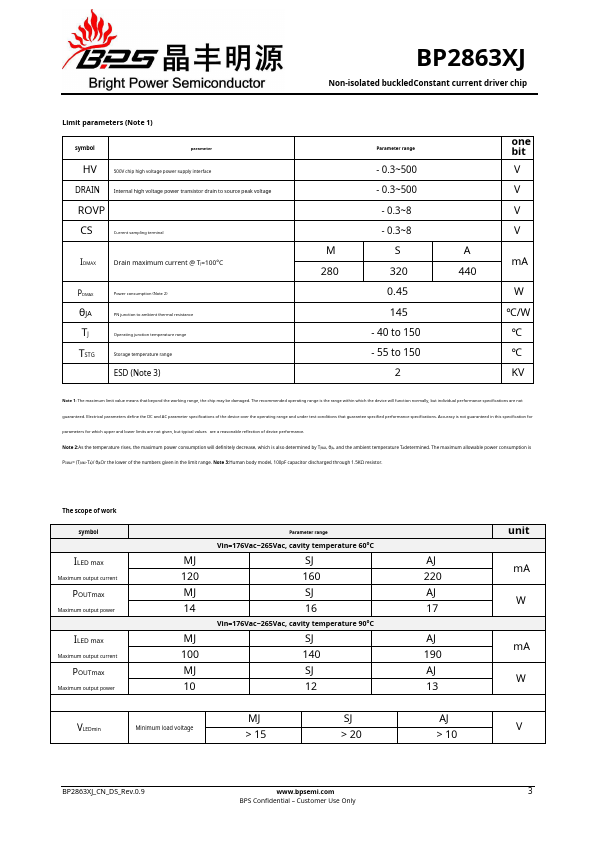

Pin number 1,7 2 3 4 5 6 Figure 2 Pin package diagram Pin name ACIN GND ROVP CS DRAIN HV AC input chip ground OVP setting pin describe Current sampling terminal, the sampling resistor is connected between CS and GND terminals Internal high voltage power tube drain Chip high voltage power supply terminal BP2863XJ_CN_DS_Rev.0.9 www.bpsemi.com 2 BPS Confidential Customer Use Only BP2863XJ Non-isolated buckledConstant current driver chip Limit parameters (Note 1) symbol param

Features

Integrated 800V rectifier bridge.
Integrated 600V ultra-fast recovery diode.
No VCC capacitor, no startup resistor.
Integrated high voltage power supply function.
External moisture-proof OVP function.
No flashing under low bus voltage.
Multiple lamps connected in parallel without flickering.
enableFunction compatible with switch color adjustment and sensor lights.
±5% LED output current accuracy.
LED short circuit protection.
