BP2857D - Non-isolated Buck Offline LED Driver

BP2857D Description

BP2857D Non-isolated Buck Offline LED Driver .
The BP2857D is a high precision buck constant current LED driver.

BP2857D Features

* Critical Conduction Mode Operation
* Internal 500V Power MOSFET
* No Auxiliary Winding
* Ultra Low Operating Current
* Universal input
* ±5% LED Output Current Accuracy
* LED Open Protection
* LED Short Protection
* Current Sensing Resistor Short Protection

BP2857D Applications

* LED Candle Light
* LED Bulb
* Other LED Lighting Typical Application AC BP2857D 5 DRAIN 6 DRAIN 4 VCC 3 TM FB 2 GND 1 CS 7 BP2857D_EN _DS_Rev.1.0 Figure 1. Typical application circuit for BP2857D www. bpsemi. com BPS Confidential
* Customer Use Only 1 Ordering Informatio

📥 Download Datasheet

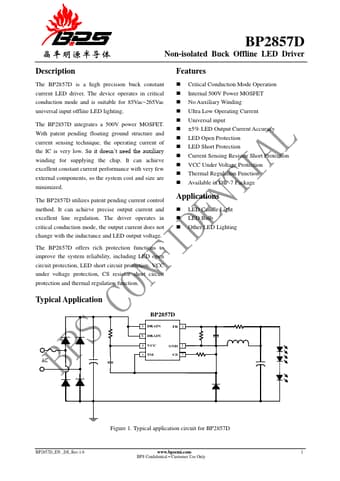

Preview of BP2857D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BP2857D
Manufacturer
BPS
File Size
678.41 KB
Datasheet
BP2857D-BPS.pdf
Description
Non-isolated Buck Offline LED Driver
