BP2327A - Non-isolated Buck APFC LED Driver

BPS

📥 Download Datasheet

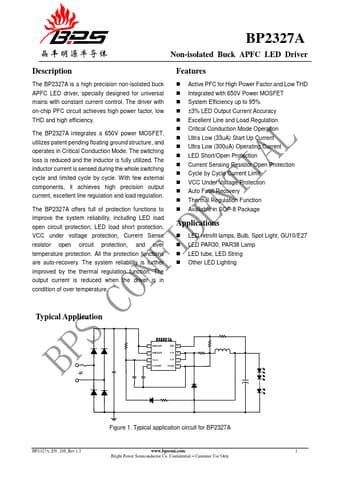

BP2327A Datasheet Preview — Preview of BP2327A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BP2327A
Manufacturer	BPS
File Size	442.80 KB
Description	Non-isolated Buck APFC LED Driver
Datasheet	BP2327A-BPS.pdf

BP2327A Product details

Description

The BP2327A is a high precision non-isolated buck APFC LED driver, specially designed for universal mains with constant current control.

Features

Active PFC for High Power Factor and Low THD.
Integrated with 650V Power MOSFET.
System Efficiency up to 95%.
±3% LED Output Current Accuracy.
Excellent Line and Load Regulation.
Critical Conduction Mode Operation.
Ultra Low (33uA) Start Up Current.
Ultra Low (300uA) Operating Current.
LED Short/Open Protection.
Current Sensing Resistor Open Protection.
Cycle by Cycle Current Limit.
VCC Under Voltage Protection.
Auto Fault Recover.
