V2520TO - Ultra Low phase noise VCO

Product Overview

BOWEI

Part number	V2520TO
Manufacturer	BOWEI
File Size	93.78 KB
Description	Ultra Low phase noise VCO
Datasheet	V2520TO Datasheet
Note	This datasheet PDF includes multiple part numbers: V2520TO, V2520SM. Please refer to the document for exact specifications by model.

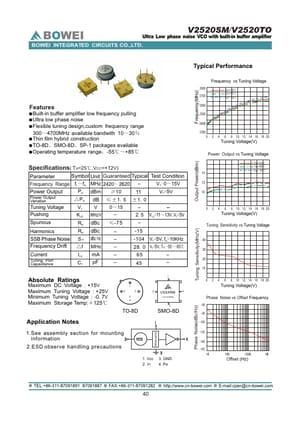

Additional preview pages of the V2520TO datasheet.

Built-in buffer amplifier low frequency pulling.
Ultra low phase noise.
Flexible tuning design,custom frequency range 300～4700MHz available bandwith 10～30％.
Thin film hybrid construction.
TO-8D、SMO-8D、SP-1 packages available.
Operating temperature range：-55℃～+85℃ Specifications( TA=25℃,VCC=+12V) Parameter Symbol Unit Guaranteed Typical Test Condition Frequency Range fL～fH MHz 2420～2620.
VT:0～15V Power Output Power Output Variation PO dBm ≥10 11 △PO dB ≤.
