MVCO075W - Broadband VCO

BOWEI

Download the MVCO075W datasheet PDF. This datasheet also covers the MVCO variant, as both devices belong to the same broadband vco family and are provided as variant models within a single manufacturer datasheet.

Key Features

Broad frequency range Frequency range 25- 6000MHz SMT package 50W Impedance Lead free, ROHS compliant.

📥 Download Datasheet

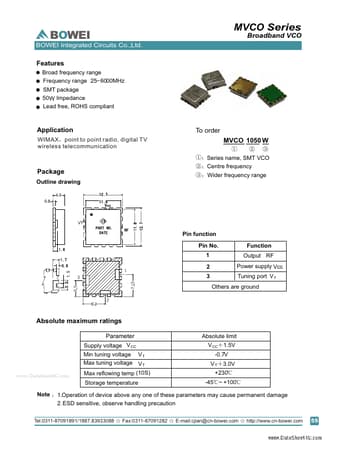

MVCO075W broadband vco by BOWEI - Datasheet Preview — Note: The manufacturer provides a single datasheet file (MVCO_BOWEI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	MVCO075W
Manufacturer	BOWEI
File Size	245.08 KB
Description	Broadband VCO
Datasheet	MVCO075W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MVCA1Z	(MVCA1Z / MVCA2Z) SD Card Host IP	Panasonic Semiconductor
MVCA2Z	(MVCA1Z / MVCA2Z) SD Card Host IP	Panasonic Semiconductor

Other Datasheets by BOWEI

Part Number	Description
MVCO070	Narrow band SMT VCO
MVCO038W	Broadband VCO
MVCO	Broadband VCO
MVCO1000D	Narrow band SMT VCO
MVCO1050	Broadband VCO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

BOWEI BOWEI Integrated Circuits Co.,Ltd. MVCO Series Broadband VCO Features Broad frequency range Frequency range 25- 6000MHz SMT package 50W Impedance Lead free, ROHS compliant Application WIMAX，point to point radio, digital TV wireless telecommunication To order MVCO 1050 W ① ② ③ ①：Series name, SMT VCO ②：Centre frequency Package Outline drawing 4.0 0.8 ③：Wider frequency range VT Pin function Pin No. 1 2 1. 5 Function Output RF Power supply Vcc Tuning port V T 3 Others are ground Absolute maximum ratings Parameter Supply voltage V CC Min tuning voltage V T Max tuning voltage V T www.DataSheet4U.com Absolute limit V CC＋1.5V -0.7V V T＋3.0V +230℃ -45℃~ +100℃ Max reflowing temp (10S) Storage temperature Note ：1.
