MVCO070 - Narrow band SMT VCO

Features

  • Low phase noise Frequency range 25-6000MHz Linear tuning Standard SMT package 50W Impedance RoHS compliant.

📥 Download Datasheet

Datasheet Details

Part number MVCO070
Manufacturer BOWEI
File Size 247.04 KB
Description Narrow band SMT VCO
Datasheet download datasheet MVCO070 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MVCA1Z (MVCA1Z / MVCA2Z) SD Card Host IP Panasonic Semiconductor
MVCA2Z (MVCA1Z / MVCA2Z) SD Card Host IP Panasonic Semiconductor

Other Datasheets by BOWEI

Part Number Description
MVCO075W Broadband VCO
MVCO038W Broadband VCO
MVCO Broadband VCO
MVCO1000D Narrow band SMT VCO
MVCO1050 Broadband VCO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

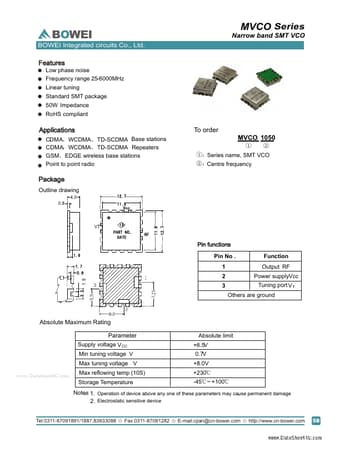

BOWEI BOWEI Integrated circuits Co., Ltd. MVCO Series Narrow band SMT VCO Features Low phase noise Frequency range 25-6000MHz Linear tuning Standard SMT package 50W Impedance RoHS compliant Applications CDMA，WCDMA ，TD-SCDMA Base stations CDMA，WCDMA ，TD-SCDMA Repeaters GSM，EDGE wireless base stations Point to point radio To order MVCO 1050 ① ② ①：Series name, SMT VCO ②：Centre frequency Package Outline drawing 4.0 0.8 VT Pin functions Pin No . 1 1. 5 Function Output RF Power supplyVcc Tuning port V T 2 3 Others are ground Absolute Maximum Rating Parameter Supply voltage V CC Min tuning voltage V Max tuning voltage V www.DataSheet4U.com Absolute limit +6.5V 0.7V +8.0V +230℃ -45℃~ +100℃ Max reflowing temp (10S) Storage Temperature Notes ：1.
