SRN4026 - Semi-shielded Power Inductors

SRN4026 Description

*RoHS COMPLIANT 150 .

SRN4026 Features

* Semi-shielded construction
* Inductance range: 1 to 220 µH
* Rated current up to 3 A
* RoHS compliant
* and halogen free

SRN4026 Applications

* DC/DC converters
* Notebook computers
* Digital video cameras
* HDDs
* Cellphones
* Televisions, LCD displays SRN4026 Series - Semi-shielded Power Inductors Temperature (°C) 4R7 Inductance @ 100 KHz / 1 V Bourns Part No. SRN4026-1R0Y SRN4026-1R2Y SRN4026-2R2Y SRN4026-3R

📥 Download Datasheet

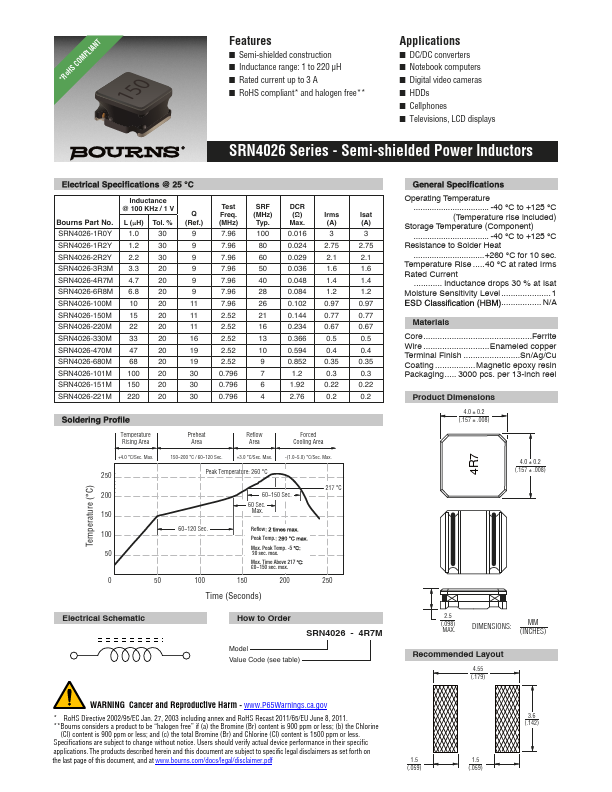

Preview of SRN4026 PDF

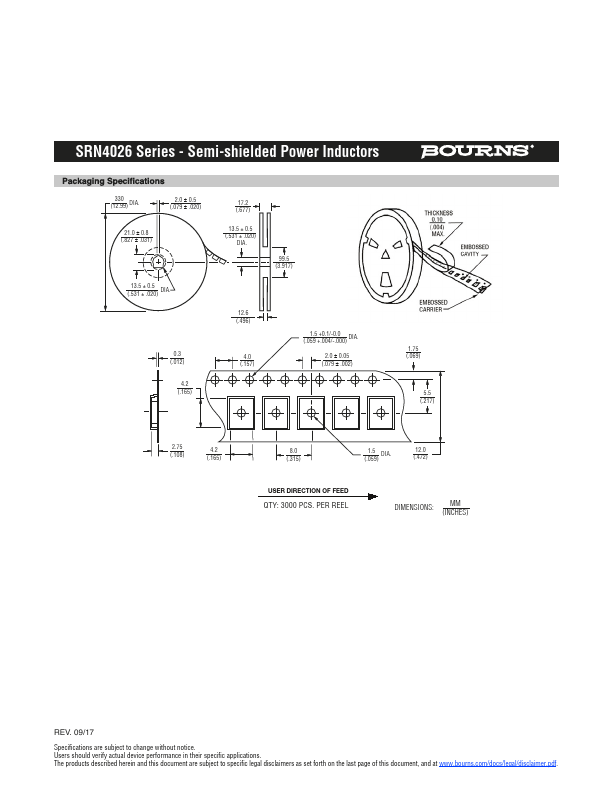

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SRN4026
Manufacturer
BOURNS
File Size
261.33 KB
Datasheet
SRN4026-BOURNS.pdf
Description
Semi-shielded Power Inductors
