SMLJ17A-Q, SMLJ12A-Q - Transient Voltage Suppressor Diode

BOURNS

📥 Download Datasheet

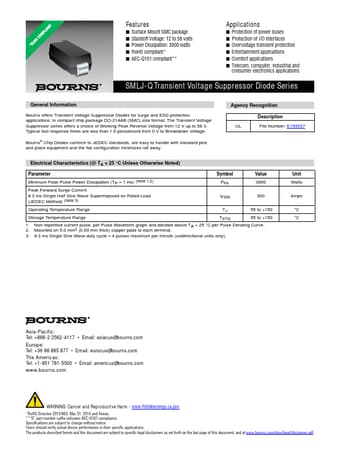

SMLJ17A-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: SMLJ17A-Q, SMLJ12A-Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SMLJ17A-Q, SMLJ12A-Q
Manufacturer: BOURNS
File Size: 144.19 KB
Datasheet: SMLJ12A-Q-BOURNS.pdf
Description: Transient Voltage Suppressor Diode
Note: This datasheet PDF includes multiple part numbers: SMLJ17A-Q, SMLJ12A-Q.
Please refer to the document for exact specifications by model.

SMLJ17A-Q Product details

Description

UL File Number: E153537 Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Value Minimum Peak Pulse Power Dissipation (TP = 1 ms) (Note 1,2) Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (J.

Features

Surface Mount SMC package.
Standoff Voltage: 12 to 58 volts.
Power Dissipation: 3000 watts.
RoHS compliant.
AEC-Q101 compliant.
