SF-3812F1000T-2 - Fast Acting SMD Fuses

Features

  • Single blow fuse for overcurrent protection.
  • EIA 3812 (10030 metric) footprint.
  • Ceramic tube design for fast acting fusing speed.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SF-3215 TUNING FORK UNIT SIWARD
SF-1610 TUNING FORK UNIT SIWARD
SF-2012 TUNING FORK UNIT SIWARD
SF-BF-10 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators Mini-Circuits
SF-BF-3 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators Mini-Circuits

Other Datasheets by Bourns

Part Number Description
SF-3812F1500T-2 Fast Acting SMD Fuses
SF-3812F2000T-2 Fast Acting SMD Fuses
SF-3812F2500T-2 Fast Acting SMD Fuses
SF-3812F3000T-2 Fast Acting SMD Fuses
SF-3812F3500T-2 Fast Acting SMD Fuses

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

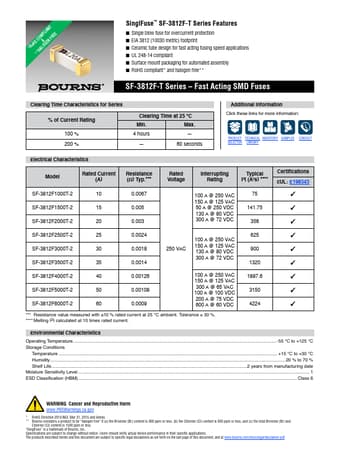

*RoHS**CHOAML&POLGIAENNTFREE L20A SinglFuse™ SF-3812F-T Series Features ■ Single blow fuse for overcurrent protection ■ EIA 3812 (10030 metric) footprint ■ Ceramic tube design for fast acting fusing speed applications ■ UL 248-14 compliant ■ Surface mount packaging for automated assembly ■ RoHS compliant* and halogen free** SF-3812F-T Series – Fast Acting SMD Fuses Clearing Time Characteristics for Series % of Current Rating 100 % 200 % Clearing Time at 25 °C Min. Max. 4 hours — — 60 seconds Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES CONTACT SELECTOR LIBRARY Electrical Characteristics Model Rated Current (A) Resistance (Ω) Typ.*** SF-3812F1000T-2 10 0.0067 SF-3812F1500T-2 15 0.005 SF-3812F2000T-2 20 0.
