SF-0603HI500M-2 - High Inrush Current Withstand Surface Mount Fuses

Download the SF-0603HI500M-2 datasheet PDF. This datasheet also covers the SF-0603HI100M-2 variant, as both devices belong to the same high inrush current withstand surface mount fuses family and are provided as variant models within a single manufacturer datasheet.

Features

  • Single blow fuse for overcurrent protection.
  • Surface mount packaging for automated assembly.
  • 1608 (EIA 0603) miniature footprint.
  • High inrush current withstand fuse.
  • UL 248-14 compliant.
  • RoHS compliant.
  • and halogen free.
  • Multilayer SMD design SF-0603HI-M Series - High Inrush Current Withstand Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % Clearing Time at 25 °C Min. Max. 4 hours.
  • 20.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SF-0603HI100M-2-BOURNS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SF-0603HI500M-2
Manufacturer Bourns
File Size 250.14 KB
Description High Inrush Current Withstand Surface Mount Fuses
Datasheet download datasheet SF-0603HI500M-2 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SF-1610 TUNING FORK UNIT SIWARD
SF-2012 TUNING FORK UNIT SIWARD
SF-3215 TUNING FORK UNIT SIWARD
SF-BF-10 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators Mini-Circuits
SF-BF-3 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators Mini-Circuits

Other Datasheets by Bourns

Part Number Description
SF-0603HI050F-2 High Inrush Current Withstand Surface Mount Fuses
SF-0603HI075F-2 High Inrush Current Withstand Surface Mount Fuses
SF-0603HI100F-2 High Inrush Current Withstand Surface Mount Fuses
SF-0603HI100M-2 High Inrush Current Withstand Surface Mount Fuses
SF-0603HI150F-2 High Inrush Current Withstand Surface Mount Fuses

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

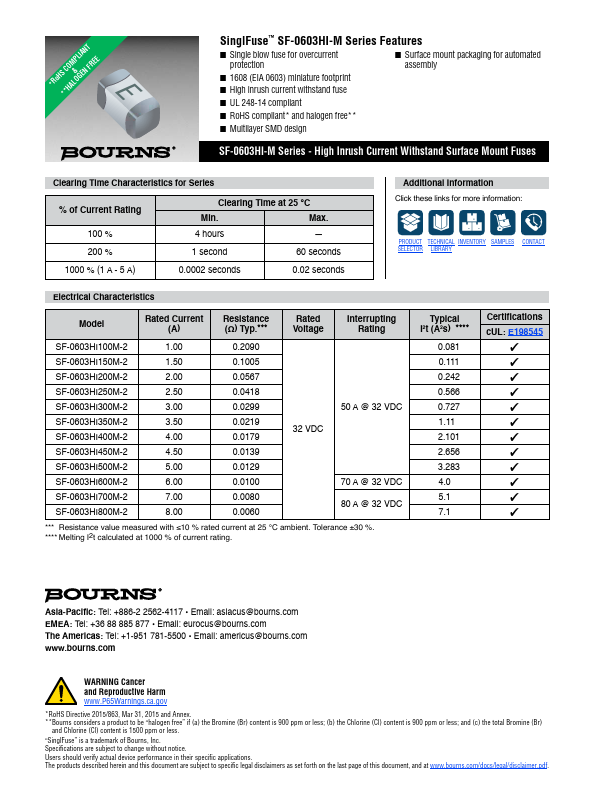

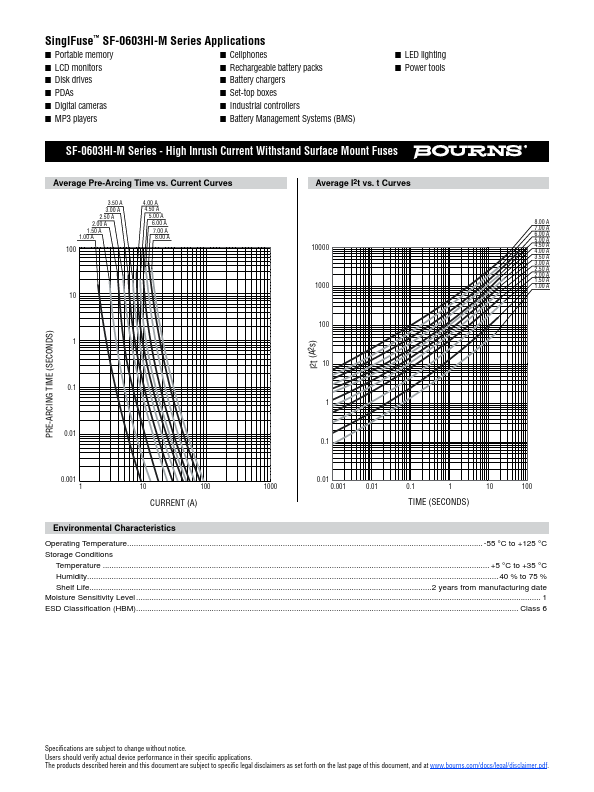

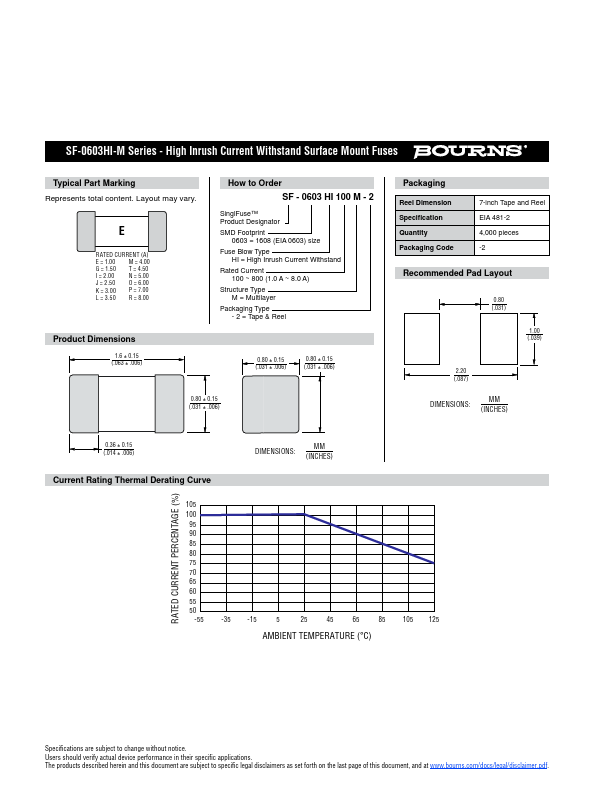

*RoHS**CHOAML&POLGIAENNTFREE E SinglFuse™ SF-0603HI-M Series Features ■ Single blow fuse for overcurrent protection ■ Surface mount packaging for automated assembly ■ 1608 (EIA 0603) miniature footprint ■ High inrush current withstand fuse ■ UL 248-14 compliant ■ RoHS compliant* and halogen free** ■ Multilayer SMD design SF-0603HI-M Series - High Inrush Current Withstand Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % Clearing Time at 25 °C Min. Max. 4 hours — 200 % 1 second 60 seconds 1000 % (1 A - 5 A) 0.0002 seconds 0.02 seconds Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES CONTACT SELECTOR LIBRARY Electrical Characteristics Model Rated Current (A) Resistance (Ω) Typ.
