PVG5H504C03B00 - Multiturn Trimming Potentiometer

Download the PVG5H504C03B00 datasheet PDF. This datasheet also covers the PVG5A100C03R00 variant, as both devices belong to the same multiturn trimming potentiometer family and are provided as variant models within a single manufacturer datasheet.

Features

  • n Surface Mount 5 mm Square / Multiturn / Cermet / Sealed n Available in both top and side adjustment n Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position n 5 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint n RoHS compliant.
  • n For trimmer.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PVG5A100C03R00-BOURNS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PVG5H504C03B00
Manufacturer Bourns
File Size 650.87 KB
Description Multiturn Trimming Potentiometer
Datasheet download datasheet PVG5H504C03B00 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PVG5H504C03 Trimmer Potentiometers Murata
PVG5H500C03 Trimmer Potentiometers Murata
PVG5H501C03 Trimmer Potentiometers Murata
PVG5H502C03 Trimmer Potentiometers Murata
PVG5H503C03 Trimmer Potentiometers Murata

Other Datasheets by Bourns

Part Number Description
PVG5H500C03B00 Multiturn Trimming Potentiometer
PVG5H501C03B00 Multiturn Trimming Potentiometer
PVG5H502C03B00 Multiturn Trimming Potentiometer
PVG5H503C03B00 Multiturn Trimming Potentiometer
PVG5H100C03B00 Multiturn Trimming Potentiometer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

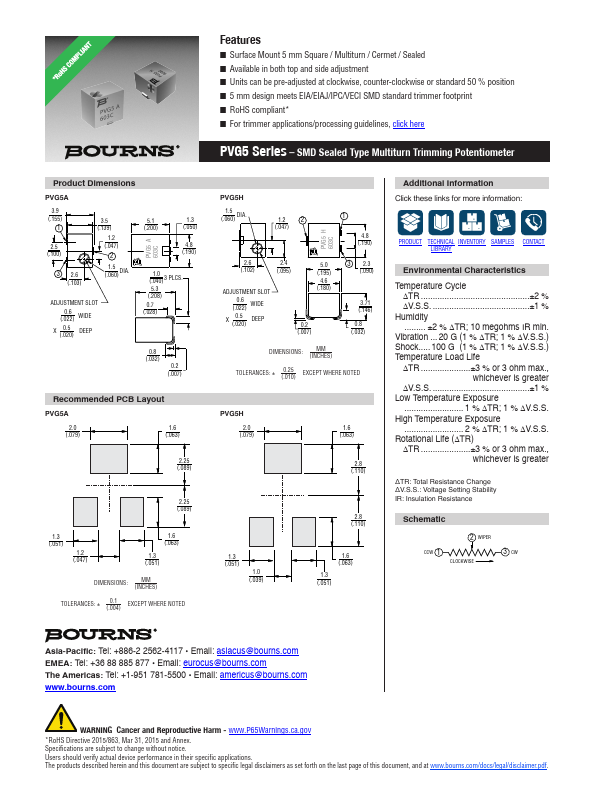

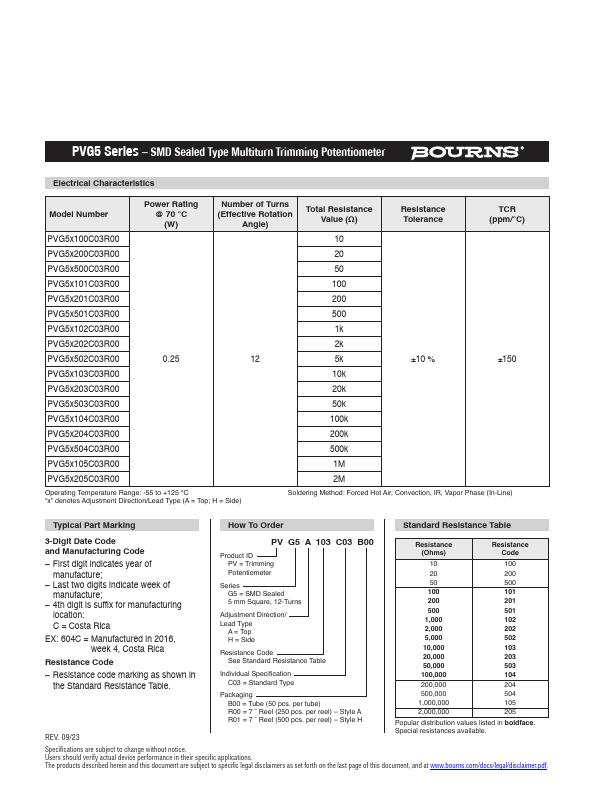

Features n Surface Mount 5 mm Square / Multiturn / Cermet / Sealed n Available in both top and side adjustment n Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position n 5 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint n RoHS compliant* n For trimmer applications/processing guidelines, click here PVG5 Series – SMD Sealed Type Multiturn Trimming Potentiometer Product Dimensions PVG5A 3.9 (.155) 1 2.5 (.100) 3.5 (.139) 1.2 (.047) 2 5.1 (.200) 1.3 (.050) 4.8 (.190) 3 2.6 (.103) 1.5 DIA. (.060) ADJUSTMENT SLOT 0.6 (.022) WIDE X 0.5 (.020) DEEP 1.0 (.040) 3 PLCS. 5.3 (.208) 0.7 (.028) 0.8 (.032) 0.2 (.007) Recommended PCB Layout PVG5A 2.0 (.079) 1.6 (.063) 2.25 (.089) 2.25 (.089) 1.3 (.051) 1.2 (.047) 1.6 (.063) 1.3 (.
