PVG3A202C01 - Trimmer Potentiometers

Download the PVG3A202C01 datasheet PDF. This datasheet also covers the PVG3A100C01 variant, as both devices belong to the same trimmer potentiometers family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1. Surface Mount 3 mm Square / Single-turn / Cermet / Sealed 2. Available in J-hook, gull-wing and reverse gull-wing pin styles 3. Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position 4. 3 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint 5. RoHS compliant.
  • 6. Metal cover for thermal protection/heat transfer 7. Units tested under 85 °C water test for 60 seconds, no bubbles PVG3A 3.6 (.142) ADJ. SLOT 2.2 (.087) DIA. 2 X .45 (.018) WIDE X.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PVG3A100C01-BOURNS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
PVG3A202C01 Trimmer Potentiometers Murata
PVG3A200C01 Trimmer Potentiometers Murata
PVG3A201C01 Trimmer Potentiometers Murata
PVG3A203C01 Trimmer Potentiometers Murata
PVG3A204C01 Trimmer Potentiometers Murata

Other Datasheets by Bourns

Part Number Description
PVG3A200C01 Trimmer Potentiometers
PVG3A201C01 Trimmer Potentiometers
PVG3A203C01 Trimmer Potentiometers
PVG3A204C01 Trimmer Potentiometers
PVG3A205C01 Trimmer Potentiometers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

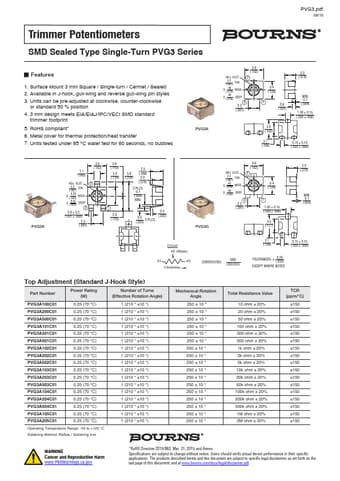

PVG3.pdf 08/19 Trimmer Potentiometers SMD Sealed Type Single-Turn PVG3 Series Features 1. Surface Mount 3 mm Square / Single-turn / Cermet / Sealed 2. Available in J-hook, gull-wing and reverse gull-wing pin styles 3. Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position 4. 3 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint 5. RoHS compliant* 6. Metal cover for thermal protection/heat transfer 7. Units tested under 85 °C water test for 60 seconds, no bubbles PVG3A 3.6 (.142) ADJ. SLOT 2.2 (.087) DIA. 2 X .45 (.018) WIDE X .40 (.016) DEEP 3 2.3 (.091) 3.4 (.134) 1 0.6 (.024) 2.0 (.079) MIN. 0.1 (.004) 1.00 ± 0.15 (.039 ± .006) 3.6 (.142) 2.7 (.106) 0.75 ± 0.15 (.030 ± .006) PVG3K 1.1 (.043) 3.6 (.142) ADJ. SLOT 2.2 (.
