PVG3A100C01 - Trimmer Potentiometers

BOURNS

📥 Download Datasheet

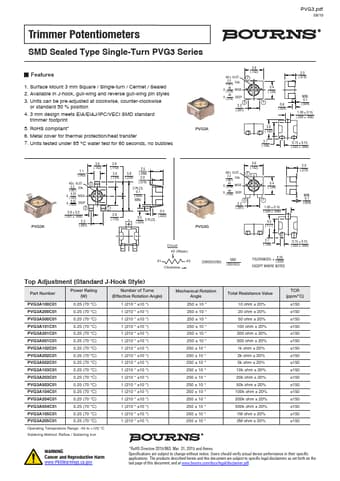

PVG3A100C01 Datasheet Preview — Preview of PVG3A100C01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PVG3A100C01
Manufacturer	BOURNS
File Size	1.12 MB
Description	Trimmer Potentiometers
Datasheet	PVG3A100C01-BOURNS.pdf

PVG3A100C01 Product details

Features

1. Surface Mount 3 mm Square / Single-turn / Cermet / Sealed 2. Available in J-hook, gull-wing and reverse gull-wing pin styles 3. Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position 4. 3 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint 5. RoHS compliant.
6. Metal cover for thermal protection/heat transfer 7. Units tested under 85 °C water test for 60 seconds, no bubbles PVG3A 3.6 (.142) ADJ. SLOT 2.2 (.087) DIA. 2 X .45 (.018) WIDE X.
