PTVS2-086C-H, PTVS2-022C-H High Current TVS Diodes

PTVS2-086C-H Description

RoHS CHOAMLOP&GLIEANNFTR *EE * * 2 1 2052P0 7 6 *RoHS COMPLIANT .
UL File Number: E215609 Symbol Value Unit 22 26 29 VWM 43 58 V 66 76 86 IPPM 2 kA TOP -55 to +125 °C TS -55 to +150 °C Asia-Pa.

PTVS2-086C-H Features

* n 2 kA, 8/20 μs surge capability n Repetitive standoff voltage: 22 to 86 volts n Bidirectional TVS n Low clamping voltage under surge n Excellent performance over temperature n Surface mount DFN package n RoHS compliant
* and halogen free

PTVS2-086C-H Applications

* n Protection against lightning strikes, inductive and transient surges up to rated limits n Exposed PoE ports n Small cell, Remote Radio Units (RRUs) and Baseband Units (BBUs) n High power DC bus protection PTVS2-xxxC-H High Current TVS Diodes General Information The Bourns® Model PTVS2-xxxC-H hig

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PTVS2-086C-H, PTVS2-022C-H. Please refer to the document for exact specifications by model.

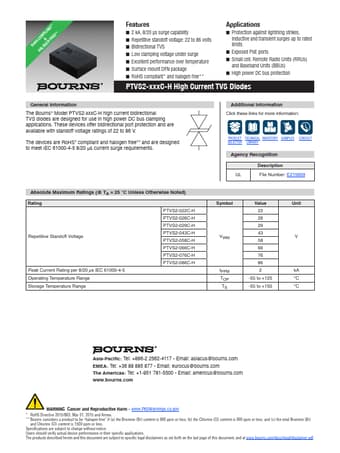

datasheet Preview Page 2 datasheet Preview Page 3
