PDB241-S - 24 mm Rotary Potentiometer

Download the PDB241-S datasheet PDF. This datasheet also covers the PDB241-D variant, as both devices belong to the same 24 mm rotary potentiometer family and are provided as variant models within a single manufacturer datasheet.

Features

  • High rotational life.
  • Metal shaft styles.
  • Carbon element.
  • Center detent option.
  • Wide range of resistance tapers.
  • RoHS compliant.
  • PDB24 Series - 24 mm Rotary Potentiometer Electrical Characteristics Taper Linear, audio Standard Resistance Range 1 K ohms to 1 M ohms Standard Resistance Tolerance±20 % Residual Resistance R500K ohms 0.1 % max. total resistance Environmental Characteristics Operating Temperature -10 °C to +70 °C Power Rati.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PDB241-D-BOURNS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PDB241-S
Manufacturer Bourns
File Size 148.79 KB
Description 24 mm Rotary Potentiometer
Datasheet download datasheet PDB241-S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PDB2116M N+P Dual Channel MOSFETs Potens semiconductor
PDB2116S N+P Dual Channel MOSFET Potens semiconductor
PDB2216S Dual N-Channel MOSFET Potens semiconductor
PDB2309L P-Channel MOSFET Potens semiconductor
PDB-C107 Blue Enhanced Photoconductive Silicon Photodiode Advanced Photonix

Other Datasheets by Bourns

Part Number Description
PDB241-D 24 mm Rotary Potentiometer
PDB241-E 24 mm Rotary Potentiometer
PDB241-GNL Guitar Potentiometer
PDB241-GTR 24mm Guitar Potentiometer
PDB241-GTR01 24mm Guitar Potentiometer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

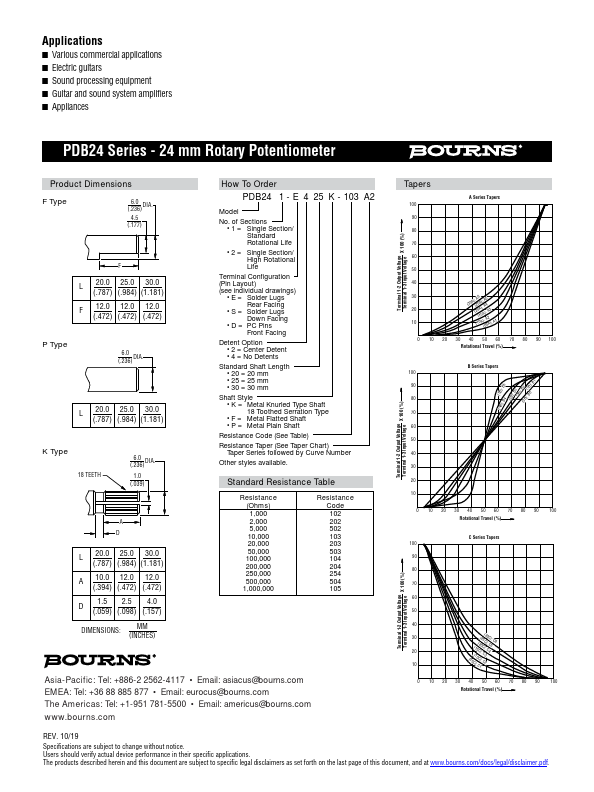

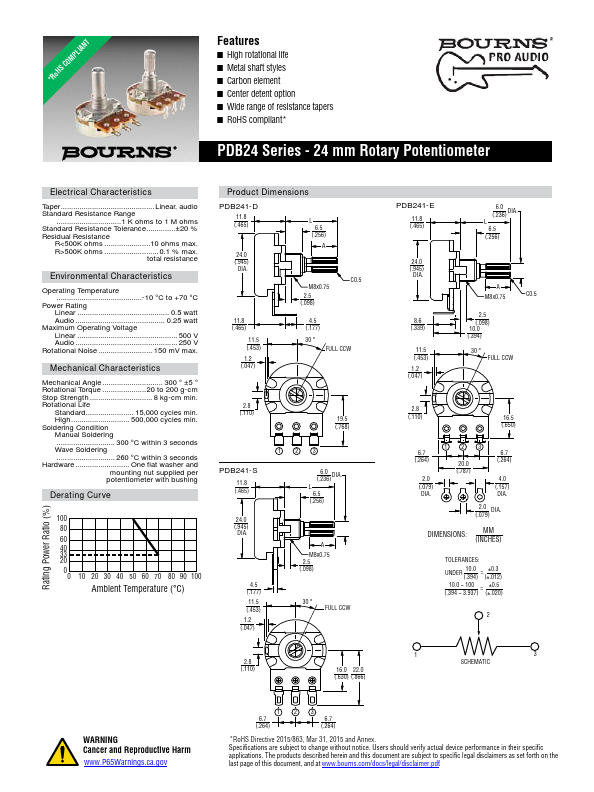

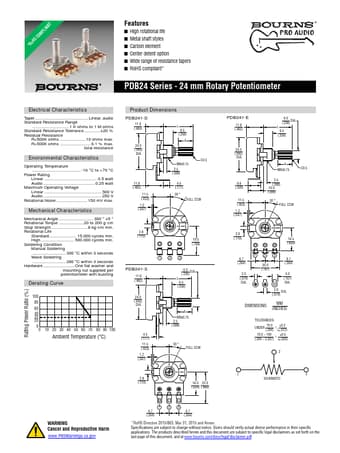

*RoHS COMPLIANT Features ■ High rotational life ■ Metal shaft styles ■ Carbon element ■ Center detent option ■ Wide range of resistance tapers ■ RoHS compliant* PDB24 Series - 24 mm Rotary Potentiometer Electrical Characteristics Taper............................................. Linear, audio Standard Resistance Range ...............................1 K ohms to 1 M ohms Standard Resistance Tolerance..............±20 % Residual Resistance R<500K ohms ......................10 ohms max. R>500K ohms ..........................0.1 % max. total resistance Environmental Characteristics Operating Temperature .........................................-10 °C to +70 °C Power Rating Linear ............................................ 0.5 watt Audio ........................................... 0.
