P4SMA150CA - Transient Voltage Suppressor Diode

Download the P4SMA150CA datasheet PDF. This datasheet also covers the P4SMA6.8A variant, as both devices belong to the same transient voltage suppressor diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • RoHS compliant.
  • and halogen free.
  • Surface Mount SMA package.
  • Breakdown Voltage: 6.8 to 550 volts.
  • Peak Pulse Power: 400 watts.
  • Typical temperature coefficient: ΔVBR = 0.1 % x VBR @ 25 °C x ΔT.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4SMA6.8A-BOURNS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4SMA150CA
Manufacturer Bourns
File Size 170.75 KB
Description Transient Voltage Suppressor Diode
Datasheet download datasheet P4SMA150CA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P4SMA150CA Surface Mount Transient Voltage Suppressor FAGOR
P4SMA150CA 400W Surface Mount Transient Voltage Suppressor TAITRON
P4SMA150CA Transient Voltage Suppression Diodes Littelfuse
P4SMA150CA TRANSIENT VOLTAGE SUPPRESSOR GME
P4SMA150CA SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Pan Jit International

Other Datasheets by Bourns

Part Number Description
P4SMA150A Transient Voltage Suppressor Diode
P4SMA15A Transient Voltage Suppressor Diode
P4SMA15CA Transient Voltage Suppressor Diode
P4SMA100A Transient Voltage Suppressor Diode
P4SMA100CA Transient Voltage Suppressor Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

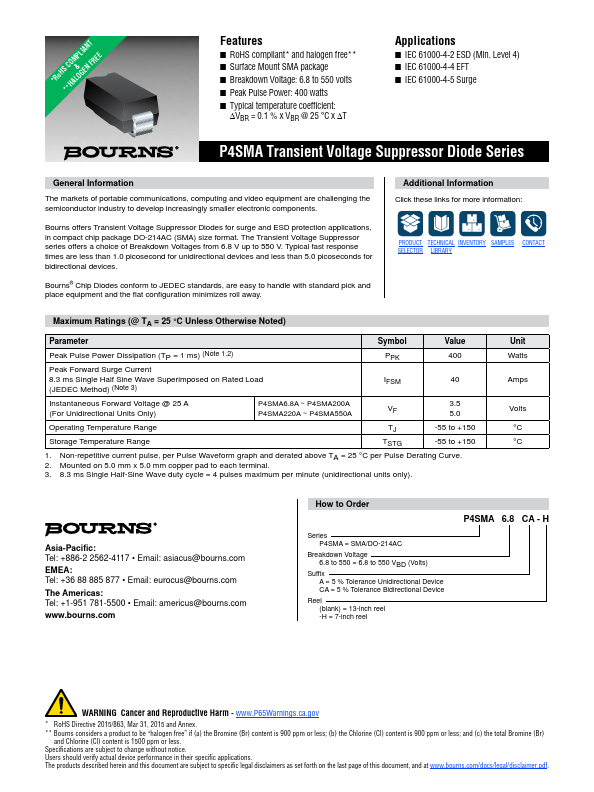

*RoHS**CHOAML&POLGIAENNTFREE Features ■ RoHS compliant* and halogen free** ■ Surface Mount SMA package ■ Breakdown Voltage: 6.8 to 550 volts ■ Peak Pulse Power: 400 watts ■ Typical temperature coefficient: ΔVBR = 0.1 % x VBR @ 25 °C x ΔT Applications ■ IEC 61000-4-2 ESD (Min. Level 4) ■ IEC 61000-4-4 EFT ■ IEC 61000-4-5 Surge P4SMA Transient Voltage Suppressor Diode Series General Information The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Breakdown Voltages from 6.
