P-TCO-N450 - Polymeric Thermal Cutoff Device

Download the P-TCO-N450 datasheet PDF. This datasheet also covers the P-TCO-N350 variant, as both devices belong to the same polymeric thermal cutoff device family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • n Compact, space-saving 1206 footprint n Low profile and symmetrical design n Small size promotes fast response time to thermal runaway events n Ultra-low resistance n RoHS compliant.
  • n Agency recognition:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P-TCO-N350-BOURNS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P-TCO-N450
Manufacturer Bourns
File Size 593.05 KB
Description Polymeric Thermal Cutoff Device
Datasheet download datasheet P-TCO-N450 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P-T100-008 SIDACtor Protection Thyristors Littelfuse
P-T100-030 SIDACtor Protection Thyristors Littelfuse
P-T100-064 SIDACtor Protection Thyristors Littelfuse
P-T100-090 SIDACtor Protection Thyristors Littelfuse
P-T100-150 SIDACtor Protection Thyristors Littelfuse

Other Datasheets by Bourns

Part Number Description
P-TCO-N400 Polymeric Thermal Cutoff Device
P-TCO-N350 Polymeric Thermal Cutoff Device
P-TCO-U350 Polymeric Thermal Cutoff Device
P-TCO-U400 Polymeric Thermal Cutoff Device
P-TCO-U450 Polymeric Thermal Cutoff Device

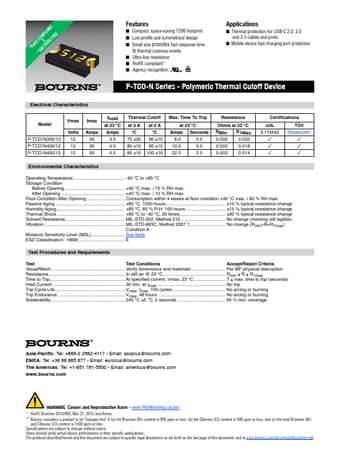

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
**HA*LROoGHESN&CFORMEEPLIANT Features n Compact, space-saving 1206 footprint n Low profile and symmetrical design n Small size promotes fast response time to thermal runaway events n Ultra-low resistance n RoHS compliant* n Agency recognition: Applications n Thermal protection for USB-C 2.0, 3.0 and 3.1 cables and ports n Mobile device fast charging port protection P-TCO-N Series - Polymeric Thermal Cutoff Device *RoHS COMPLIANT Electrical Characteristics Model P-TCO-N350/12 P-TCO-N400/12 P-TCO-N450/12 Vmax Volts 12 12 12 Imax Amps 50 50 50 Ihold at 23 °C Amps 3.5 4.0 4.5 LEAD FREE Thermal Cutoff at 3 A °C 75 ±20 80 ±15 at 2 A °C   90 ±15   95 ±15 85 ±15 100 ±10 Max. Time To Trip at 23 °C Amps Seconds  8.0 5.0 10.0 5.0 22.5 2.0 Resistance Ohms at 23 °C RMin. R1Max. 0.002 0.
