MF-NSHT035KX - PTC Resettable Fuses

Download the MF-NSHT035KX datasheet PDF. This datasheet also covers the MF-NSHT016KX variant, as both devices belong to the same ptc resettable fuses family and are provided as variant models within a single manufacturer datasheet.

Description

Rmin ≤ R ≤ Rmax T ≤ max.

95 % min.

RoHS Directive 2015/863, Mar 31, 2015 and Annex.

Specifications are subject to change without notice.

Features

  • Compliant with AEC-Q200 Rev-D - Stress Test Qualification for Passive Components in Automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MF-NSHT016KX-BOURNS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MF-10KDS-R13-060 SONET/SDH TRANSMITTER & RECIEVER Mitsubishi
MF-10KDS-R13-061 SONET/SDH TRANSMITTER & RECIEVER Mitsubishi
MF-10KDS-R13-070 SONET/SDH TRANSMITTER & RECIEVER Mitsubishi
MF-10KDS-R13-071 SONET/SDH TRANSMITTER & RECIEVER Mitsubishi
MF-10KDS-T12-060 SONET/SDH TRANSMITTER & RECIEVER Mitsubishi

Other Datasheets by Bourns

Part Number Description
MF-NSHT010KX PTC Resettable Fuses
MF-NSHT016KX PTC Resettable Fuses
MF-NSHT020KX PTC Resettable Fuses
MF-NSHT050KX PTC Resettable Fuses
MF-NSHT075KX PTC Resettable Fuses

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

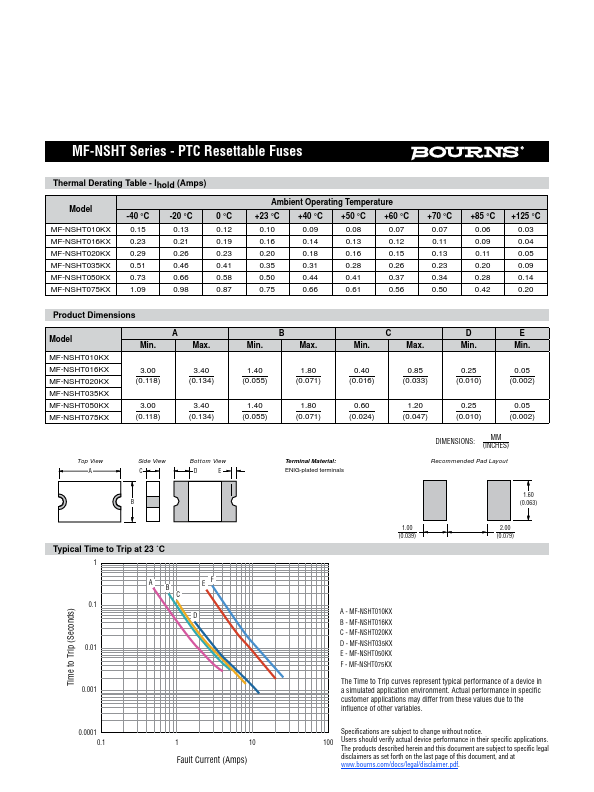

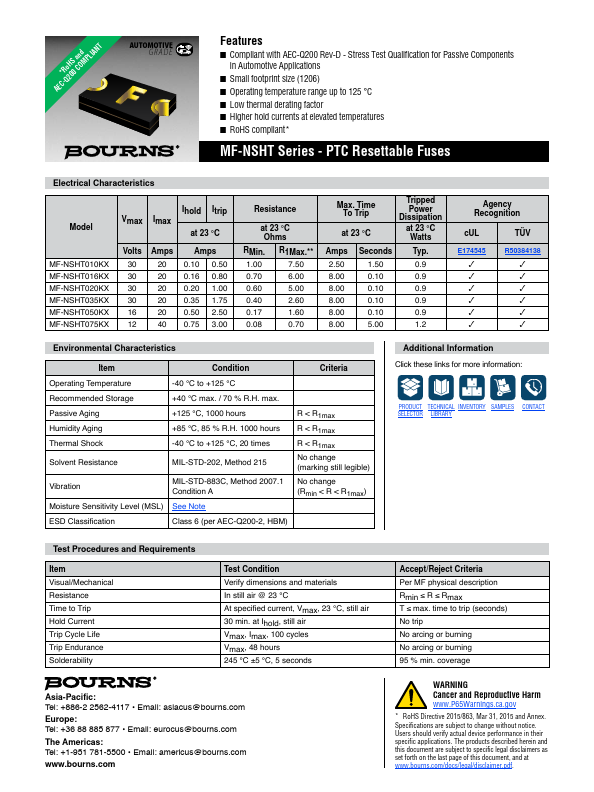

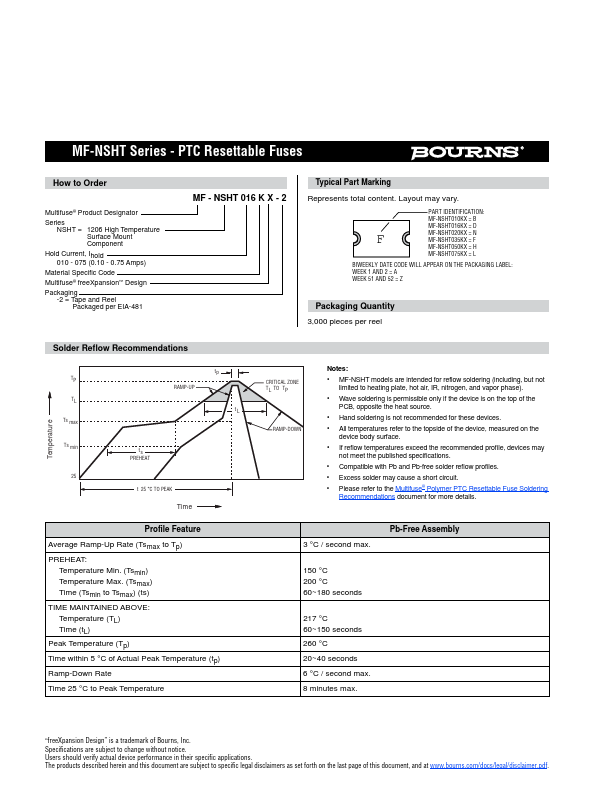

AE*CR-Qo2H0S0aCnOdMPLIANT AUTOMOTIVE GRADE Features ■ Compliant with AEC-Q200 Rev-D - Stress Test Qualification for Passive Components in Automotive Applications ■ Small footprint size (1206) ■ Operating temperature range up to 125 °C ■ Low thermal derating factor ■ Higher hold currents at elevated temperatures ■ RoHS compliant* MF-NSHT Series - PTC Resettable Fuses Electrical Characteristics Model Vmax Imax Ihold Itrip at 23 °C MF-NSHT010KX MF-NSHT016KX MF-NSHT020KX MF-NSHT035KX MF-NSHT050KX MF-NSHT075KX Volts 30 30 30 30 16 12 Amps 20 20 20 20 20 40 Amps 0.10 0.50 0.16 0.80 0.20 1.00 0.35 1.75 0.50 2.50 0.75 3.00 Resistance at 23 °C Ohms RMin. R1Max.** 1.00 7.50 0.70 6.00 0.60 5.00 0.40 2.60 0.17 1.60 0.08 0.70 Max.
