FW20A - Fusible Power Resistors

BOURNS

📥 Download Datasheet

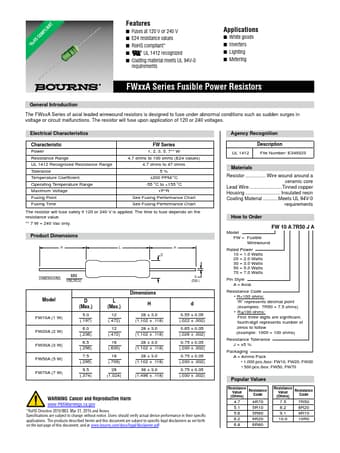

FW20A Datasheet Preview — Preview of FW20A PDF

Datasheet Details

Part number	FW20A
Manufacturer	BOURNS
File Size	179.12 KB
Description	Fusible Power Resistors
Datasheet	FW20A-BOURNS.pdf

FW20A Product details

Description

File Number: E349323 Materials Resistor Wire wound around a ceramic core Lead Wire Tinned copper Housing Insulated resin Coating Material Meets UL 94V-0 requirements How to Order FW 10 A 7R50 J A Model FW = Fusible Wirewound Rated Power 10 = 1.0 Watts 20 = 2.0 Watts 30 = 3.0 Watts 50 = 5.0 Watts 70 = 7.0 Watts Pin Style A = Axial Resistance Code R

Features

Fuses at 120 V or 240 V.
E24 resistance values.
RoHS compliant.
UL 1412 recognized.
Coating material meets UL 94V-0 requirements.
