Description
Short Time Overload
Load Life Resistance to Soldering Heat
Thermal Shock
Method
2.5 x (PR)1/2 for 5 seconds.(IEC 115-1 4.13)
(PR)1/2 for 1000 hours; 1.5 hours on; 0.5 hours off.(IEC 115-1 4.25.1)
260 °C for 10 seconds.(IEC 115-1 4.18)
5 cycles from -55 °C to +125 °C, 30 minutes at temperature.(IEC 115-1 4.19)
Limit
1 % Tolerance: DR ≤ ±(1 % + 0.001 W) 5 % Tolerance: DR ≤ ±(2 % + 0.001 W)
1 % Tolerance: DR ≤ ±(1 % + 0.001 W) 5 % Tolerance: DR ≤ ±(2 % + 0.001 W)
1 % Tolerance: DR ≤ ±(0

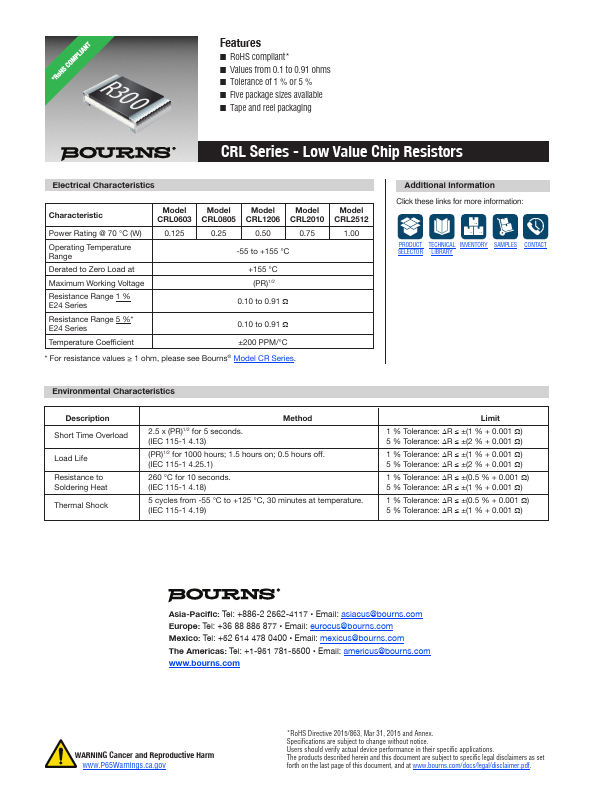

Features
- n RoHS compliant.
- n Values from 0.1 to 0.91 ohms n Tolerance of 1 % or 5 % n Five package sizes available n Tape and reel packaging

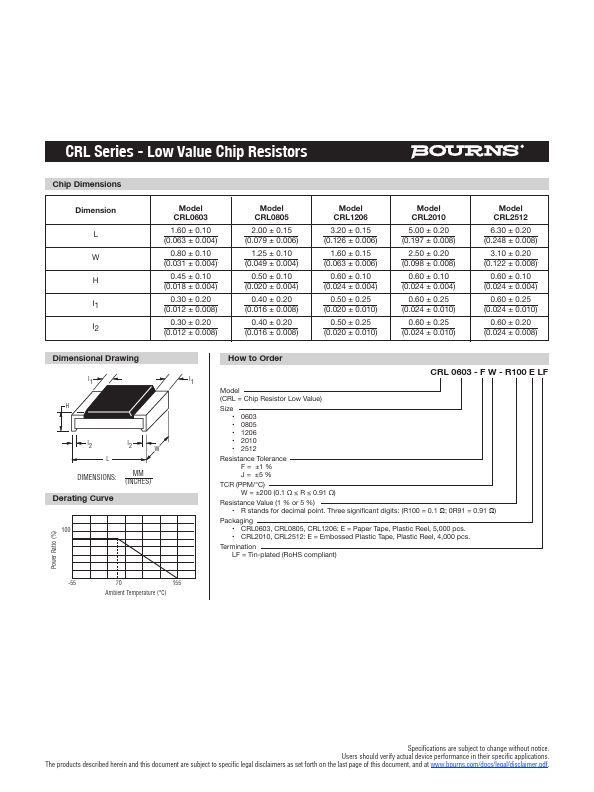

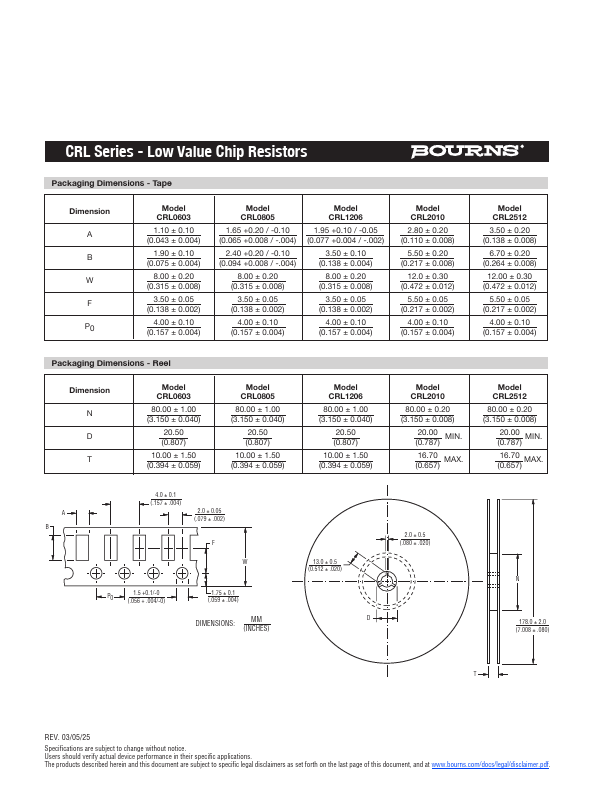

CRL Series - Low Value Chip Resistors
Electrical Characteristics
Characteristic
Power Rating @ 70 °C (W) Operating Temperature Range Derated to Zero Load at Maximum Working Voltage Resistance Range 1 % E24 Series Resistance Range 5 %.
- E24 Series Temperature Coefficient
Model CRL0603
0.125
Model CRL0805
0.25
Model CRL1206
0.50
Model CRL2010
0.75
-55 t.
