CRE2512 High Power Current Sense Chip Resistor

BOURNS

CRE2512 Description

R008 AEC *-RQo2H0S0aCnOdMPLIANT .

CRE2512 Features

* n Mn/Cu alloy resistor n Power rating at 70 °C: 2 W, 3 W n Inductance less than 5 nH n Low thermal EMF

CRE2512 Applications

* n Power supplies n Stepper motor drives n Battery packs n White goods n Input amplifiers CRE2512 - High Power Current Sense Chip Resistor Electrical Characteristics Characteristic CRE2512 Power Rating @ 70 °C 2 W 3W Metal Strip Alloy Mn/Cu Operating Temperature Range -55 °C to +170

📥 Download Datasheet

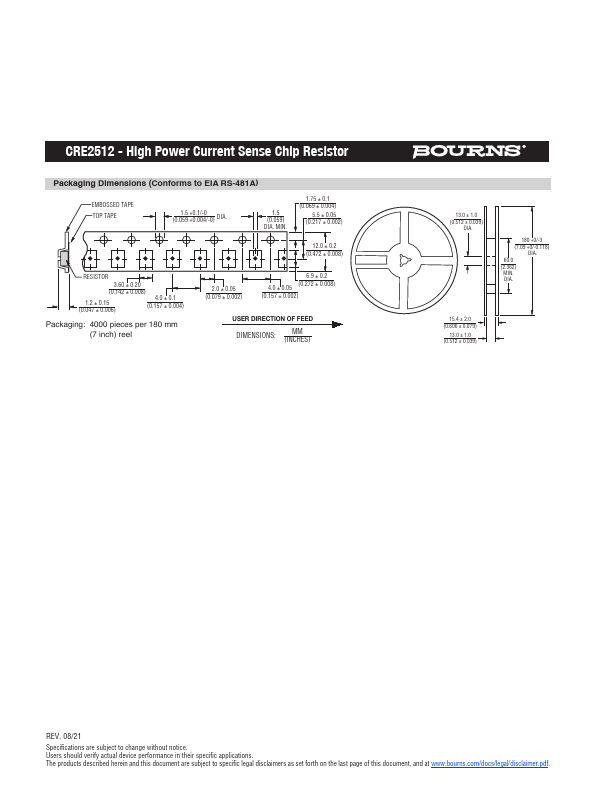

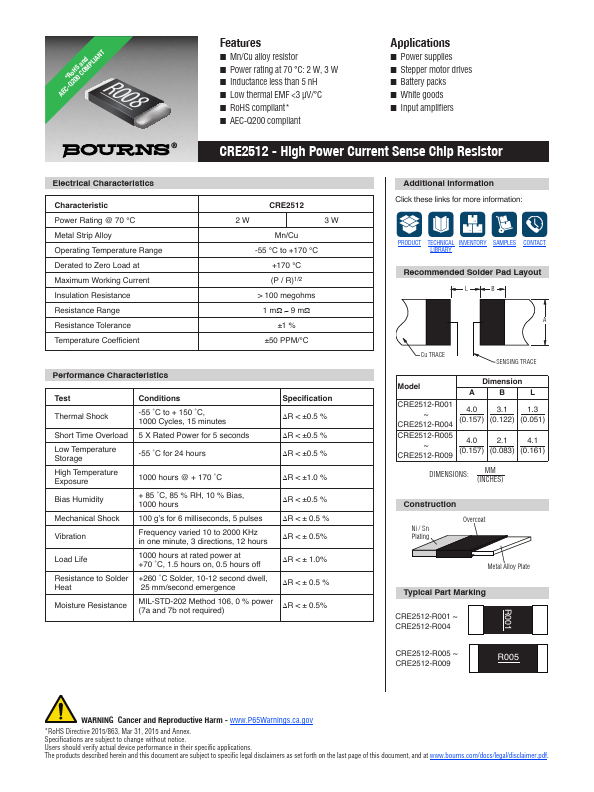

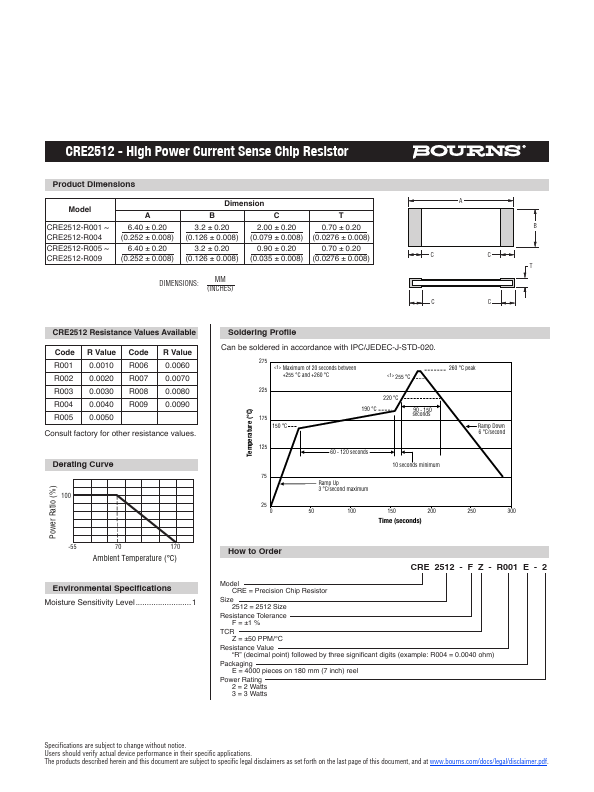

CRE2512 Datasheet Preview — Preview of CRE2512 PDF

Datasheet Details

Part number: CRE2512
Manufacturer: BOURNS
File Size: 593.42 KB
Datasheet: CRE2512-BOURNS.pdf
Description: High Power Current Sense Chip Resistor
