CMP1206 - High Power Anti-Surge Chip Resistors

Download the CMP1206 datasheet PDF. This datasheet also covers the CMP0603 variant, as both devices belong to the same high power anti-surge chip resistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Thick film technology.
  • Power rating up to 1.5 watts @ 70 °C.
  • High power surge withstanding.
  • RoHS compliant.
  • Halogen free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CMP0603-BOURNS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CMP1206
Manufacturer Bourns
File Size 231.91 KB
Description High Power Anti-Surge Chip Resistors
Datasheet download datasheet CMP1206 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CMP120P03 P-Channel 30V MOSFET VBsemi
CMP100 HIGH-SPEED WINDOW COMPARATOR ATE PIN RECEIVER Burr-Brown
CMP100N03 N-Ch 30V Fast Switching MOSFETs Cmos
CMP100N04 N-Ch 40V Fast Switching MOSFETs Cmos
CMP1404 N-Channel Enhancement Mode Field Effect Transistor Cmos

Other Datasheets by Bourns

Part Number Description
CMP1206A High Power Anti-Surge Chip Resistors
CMP0603 High Power Anti-Surge Chip Resistors
CMP0603A High Power Anti-Surge Chip Resistors
CMP0805 High Power Anti-Surge Chip Resistors
CMP0805A High Power Anti-Surge Chip Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

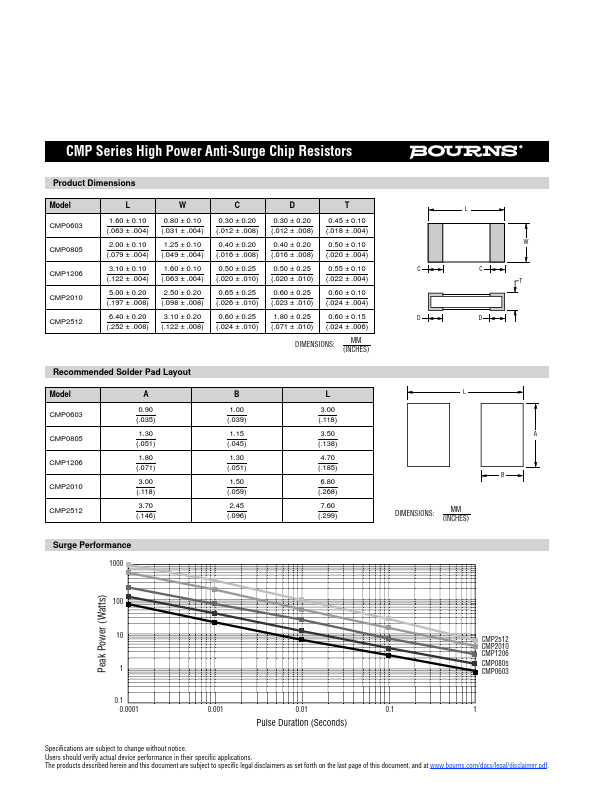

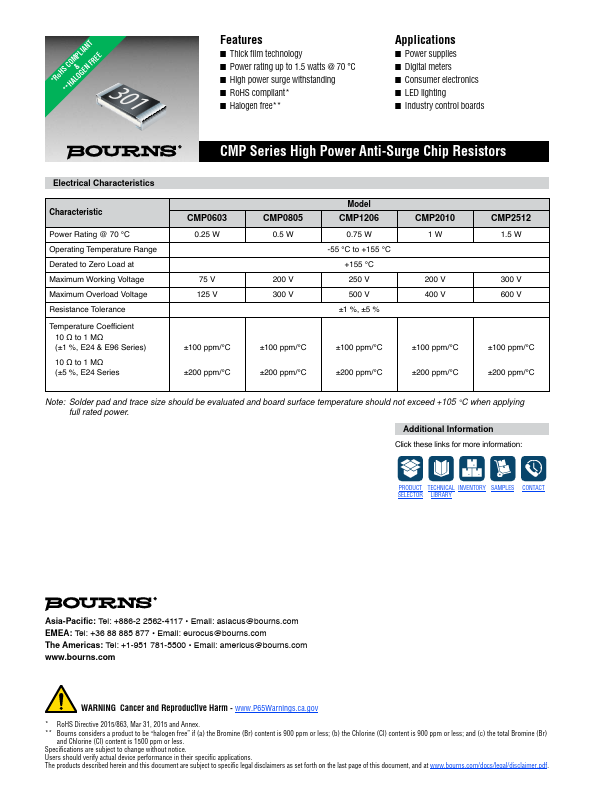

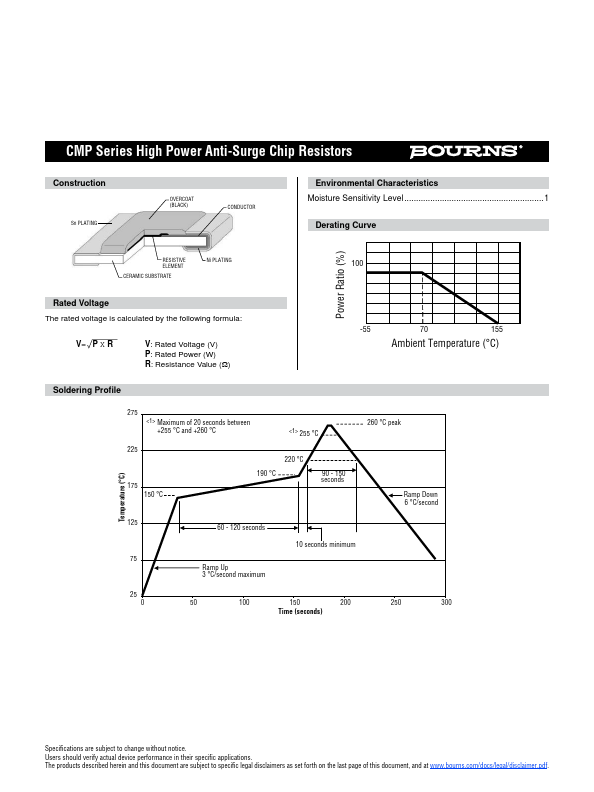

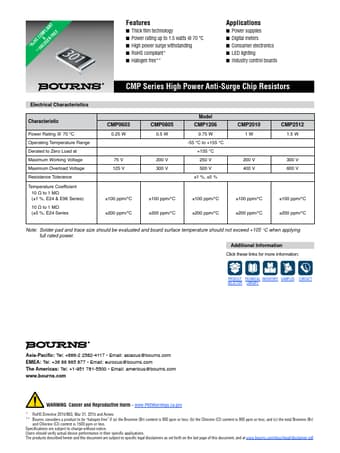

301 *RoHS**CHOAML&POLGIAENNTFREE Features ■ Thick film technology ■ Power rating up to 1.5 watts @ 70 °C ■ High power surge withstanding ■ RoHS compliant* ■ Halogen free** Applications ■ Power supplies ■ Digital meters ■ Consumer electronics ■ LED lighting ■ Industry control boards CMP Series High Power Anti-Surge Chip Resistors Electrical Characteristics Characteristic Power Rating @ 70 °C Operating Temperature Range Derated to Zero Load at Maximum Working Voltage Maximum Overload Voltage Resistance Tolerance Temperature Coefficient 10 Ω to 1 MΩ (±1 %, E24 & E96 Series) 10 Ω to 1 MΩ (±5 %, E24 Series CMP0603 0.25 W 75 V 125 V ±100 ppm/°C ±200 ppm/°C CMP0805 0.5 W 200 V 300 V Model CMP1206 0.
