CMP0805 - High Power Anti-Surge Chip Resistors

Download the CMP0805 datasheet PDF. This datasheet also covers the CMP0603 variant, as both devices belong to the same high power anti-surge chip resistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Thick film technology.
  • Power rating up to 1.5 watts @ 70 °C.
  • High power surge withstanding.
  • RoHS compliant.
  • Halogen free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CMP0603-BOURNS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CMP0805
Manufacturer Bourns
File Size 231.91 KB
Description High Power Anti-Surge Chip Resistors
Datasheet download datasheet CMP0805 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CMP0817BA0-I CMOS LPRAM Fidelix
CMP0817BA0-P70I CMOS LPRAM Fidelix
CMP01 Fast Precision Comparator Analog Devices
CMP01 Industrial Linear ETC
CMP012N06 60V N-Channel MOSFET Cmos

Other Datasheets by Bourns

Part Number Description
CMP0805A High Power Anti-Surge Chip Resistors
CMP0603 High Power Anti-Surge Chip Resistors
CMP0603A High Power Anti-Surge Chip Resistors
CMP1206 High Power Anti-Surge Chip Resistors
CMP1206A High Power Anti-Surge Chip Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

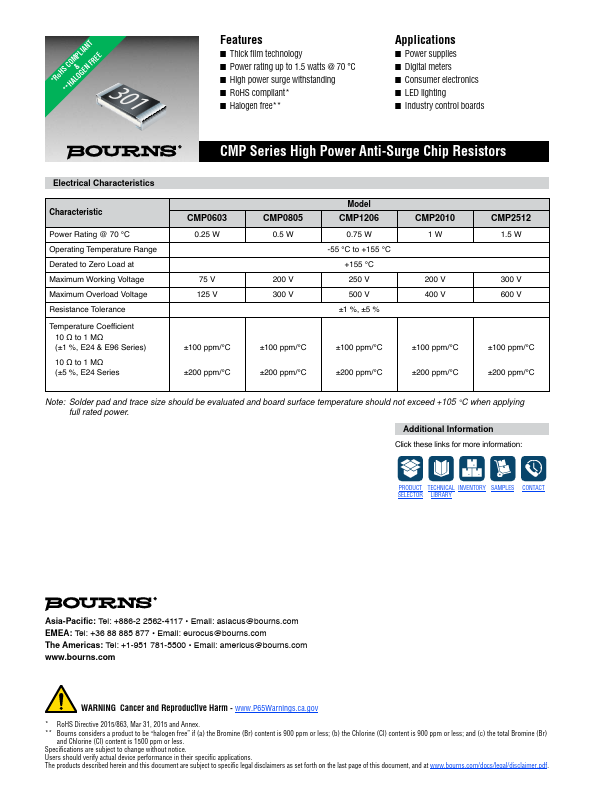

301 *RoHS**CHOAML&POLGIAENNTFREE Features ■ Thick film technology ■ Power rating up to 1.5 watts @ 70 °C ■ High power surge withstanding ■ RoHS compliant* ■ Halogen free** Applications ■ Power supplies ■ Digital meters ■ Consumer electronics ■ LED lighting ■ Industry control boards CMP Series High Power Anti-Surge Chip Resistors Electrical Characteristics Characteristic Power Rating @ 70 °C Operating Temperature Range Derated to Zero Load at Maximum Working Voltage Maximum Overload Voltage Resistance Tolerance Temperature Coefficient 10 Ω to 1 MΩ (±1 %, E24 & E96 Series) 10 Ω to 1 MΩ (±5 %, E24 Series CMP0603 0.25 W 75 V 125 V ±100 ppm/°C ±200 ppm/°C CMP0805 0.5 W 200 V 300 V Model CMP1206 0.
