CD1005-S0180 - Switching Chip Diode

BOURNS

📥 Download Datasheet

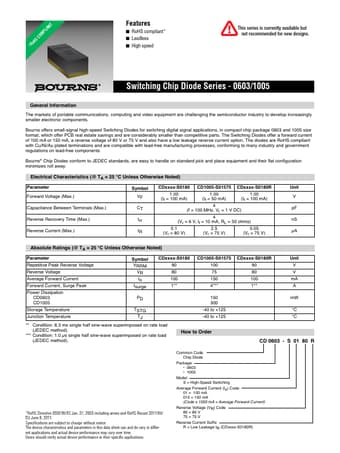

CD1005-S0180 Datasheet Preview — Preview of CD1005-S0180 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CD1005-S0180
Manufacturer	BOURNS
File Size	281.18 KB
Description	Switching Chip Diode
Datasheet	CD1005-S0180-BOURNS.pdf

CD1005-S0180 Product details

Features

RoHS compliant.
Leadless.
High speed This series is currently available but not recommended for new designs. S3 Switching Chip Diode Series - 0603/1005 General Information The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers small-signal high-speed Switching Diodes for switching digital signal.
