1.5SMC120A, 1.5SMC6.8A - Transient Voltage Suppressor Diode

Name: 1.5SMC120A
SKU: 1.5SMC120A-1167260

BOURNS

The 1.5SMC120A by BOURNS is a Transient Voltage Suppressor Diode. Below is the official datasheet preview.

Datasheet Details

Part number	1.5SMC120A, 1.5SMC6.8A
Manufacturer	BOURNS
File Size	298.32 KB
Description	Transient Voltage Suppressor Diode
Datasheet	1.5SMC6.8A-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: 1.5SMC120A, 1.5SMC6.8A. Please refer to the document for exact specifications by model.

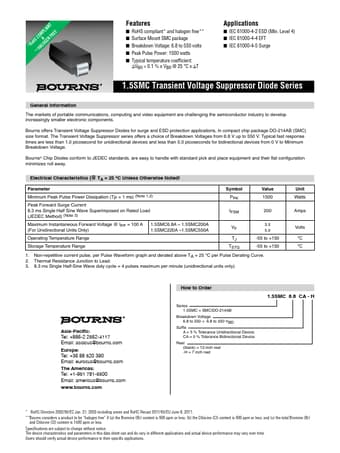

Additional preview pages of the 1.5SMC120A datasheet.

n RoHS compliant.
and halogen free.
n Surface Mount SMC package n Breakdown Voltage: 6.8 to 550 volts n Peak Pulse Power: 1500 watts n Typical temperature coefficient: ∆VBR = 0.1 % x VBR @ 25 °C x ∆T.
