MPM-9561 - 60W Open Frame Power-Supply

The MPM-9561 by BOSER Technology is a 60W Open Frame Power-Supply. Below is the official datasheet preview.

Datasheet Details

Part number	MPM-9561
Manufacturer	BOSER Technology
File Size	71.98 KB
Description	60W Open Frame Power-Supply
Datasheet	MPM-9561_BOSERTechnology.pdf

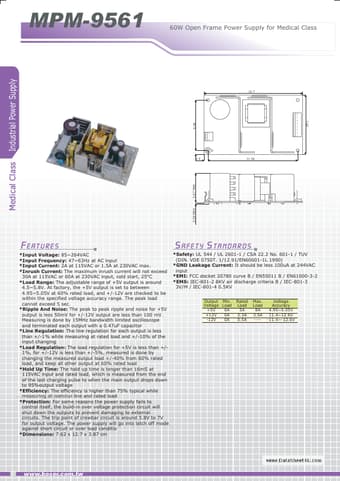

Additional preview pages of the MPM-9561 datasheet.

Input Voltage: 85~264VAC.
Input Frequency: 47~63Hz at AC input.
Input Current: 2A at 115VAC or 1.5A at 230VAC max.
Inrush Current: The maximum inrush current will not exceed 30A at 115VAC or 60A at 230VAC input, cold start, 25oC.
Load Range: The adjustable range of +5V output is around 4.5~5.8V. At factory, the +5V output is set to between 4.95~5.05V at 60% rated load, and +/-12V are checked to be within the specified voltage accuracy range. The peak load cannot exceed 5 se.
