HS-7250 - Intel P-M/C-M/ULV C-M processor PCI-ISA Bus SBC w/CF DVI-I/CRT/LVDS Dual LAN Audio 3 USB2.0

Datasheet Details

Part number	HS-7250
Manufacturer	BOSER Technology
File Size	194.41 KB
Description	Intel P-M/C-M/ULV C-M processor PCI-ISA Bus SBC w/CF DVI-I/CRT/LVDS Dual LAN Audio 3 USB2.0
Datasheet	HS-7250_BOSERTechnology.pdf

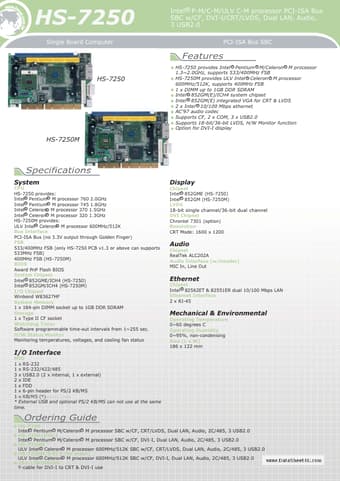

HS-7250 HS-7250 provides Intel R Pentium R M/Celeron R M processor 1.3~2.0GHz, supports 533/400MHz FSB HS-7250M provides ULV Intel R Celeron R M processor 600MHz/512K, supports 400MHz FSB 1 x DIMM up to 1GB DDR SDRAM Intel R 852GM(E)/ICH4 system chipset Intel R 852GM(E) integrated VGA for CRT & LVDS 2 x Intel R 10/100 Mbps ethernet AC'97 audio codec Supports CF, 2 x COM, 3 x USB2.0 Supports 18-bit/36-bit LVDS, H/W Monitor function Option for DVI-I display HS-7250M Specifications CPU HS-7250 pr.
