BM9168 - 250mA CMOS LDO

BOOKLY

Features

The BM9168 family is a positive voltage linear regulator developed utilizing CMOS technology featured low quiescent current (10uA typ. ), low dropout voltage, and high output voltage accuracy. Built-in low on-resistance transistor provides low dropout voltage and large output current. A 1.0µF or greater can be used as an output capacitor. The SOT-23-3 miniaturized package are recommended for configuring portable devices and large current.

BM9168 250ma cmos ldo by BOOKLY - Datasheet Preview

Datasheet Details

Part number	BM9168
Manufacturer	BOOKLY
File Size	204.56 KB
Description	250mA CMOS LDO
Datasheet	BM9168 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BM9165	Ultra Low Dropout 2A CMOS LDO	BOOKLY MICRO
BM9166	250mA CMOS LDO	ETC
BM90	Bluetooth 3.0 Multi-Speaker Stereo Audio Module	ISSC
BM92A11MWV-Z	USB Type-C Power Delivery Controller	ROHM
BM92A12MWV-Z	USB Type-C Power Delivery Controller	ROHM

Other Datasheets by BOOKLY

Part Number	Description
BM9162	450mA Low Dropout Positive Voltage Regulator
BM9164	1A BiCMOS LDO
BM9209	300mA CMOS LDO
BM9230	600mA CMOS LDO
BM9803	Infrared controler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

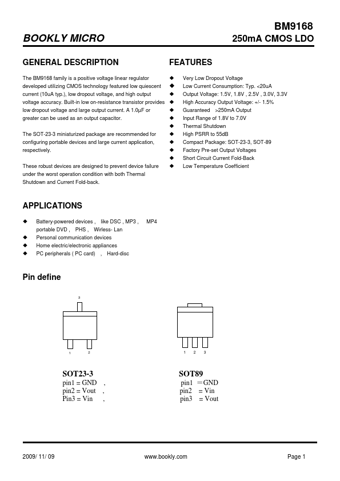

BOOKLY MICRO BM9168 250mA CMOS LDO GENERAL DESCRIPTION FEATURES The BM9168 family is a positive voltage linear regulator developed utilizing CMOS technology featured low quiescent current (10uA typ.), low dropout voltage, and high output voltage accuracy. Built-in low on-resistance transistor provides low dropout voltage and large output current. A 1.0µF or greater can be used as an output capacitor. The SOT-23-3 miniaturized package are recommended for configuring portable devices and large current application, respectively. These robust devices are designed to prevent device failure under the worst operation condition with both Thermal Shutdown and Current Fold-back. Very Low Dropout Voltage Low Current Consumption: Typ.
