NV126A1M-N52 - TFT LCD

BOE

📥 Download Datasheet

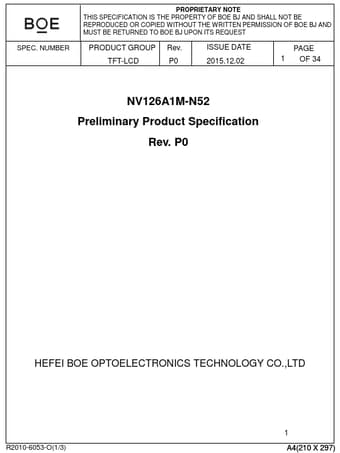

NV126A1M-N52 Datasheet Preview — Preview of NV126A1M-N52 PDF

Datasheet Details

Part number	NV126A1M-N52
Manufacturer	BOE
File Size	757.05 KB
Description	TFT LCD
Datasheet	NV126A1M-N52-BOE.pdf

NV126A1M-N52 Product details

Description

OF CHANGES Initial Release DATE 2016.04.07 ISSUE DATE 2015.12.02 PAGE 2 OF 34 PREPARED Liu Bin R2010-6053-O(2/3) 2 A4(210 X 297) SPEC.NUMBER PRODUCT GROUP REV TFT- LCD PRODUCT P0 SPEC.TITLE NV126A1M-N52 Preliminary Product Specification Contents No.1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 Items REVISION HISTORY CONTENTS General Description Absolute Maximum ratings Electrical specifications.Optical specifications.Interface Connection Signal Timing S

Features

4 lane eDP1.3 Interface with 5.4Gbps Link Rates.
Thin and light weight.
True 8bit, display 16.7M colors.
Single LED Lighting Bar. (Down side/Horizontal Direction).
Thin Mounting frame.
Green Product (RoHS & Halogen free product).
On board LED Driving circuit.
Low driving voltage and low power consumption.
On board EDID chip R2010-6053-O(3/3) 4 A4(210 X 297).
