MV190E0M-N10 Datasheet (BOE)

MV190E0M-N10, TFT LCD

of changes Date Preliminary Specification Oct.30.2015 Add R/G/B coordinate Jan.12.2016 LED connector type changed Jan.12.2016 Module outline (rear view) change Jan.12.2016 d Signal timing specification updated May.3.2016 box label updated May.3.2016 Preliminary Specification May.3.2016

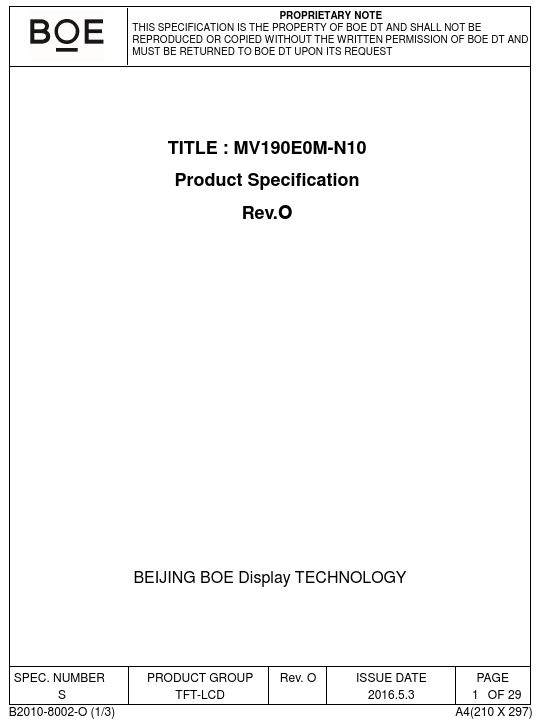

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE DT AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE DT AND MUST BE RETURNED TO BOE DT UPON ITS REQUEST TITLE : MV190E0M-N10 Product Specification Rev.O BEIJING BOE Display TECHNOLOGY SPEC.

NUMBER S B2010-8002-O (1/3) PRODUCT GROUP TFT-LCD Rev.

O ISSUE DATE 2016.5.3 PAGE 1 OF 29 A4(210 X 297) PRODUCT GROUP TFT- LCD PRODUCT REV Rev.

O ISSUE DATE May.

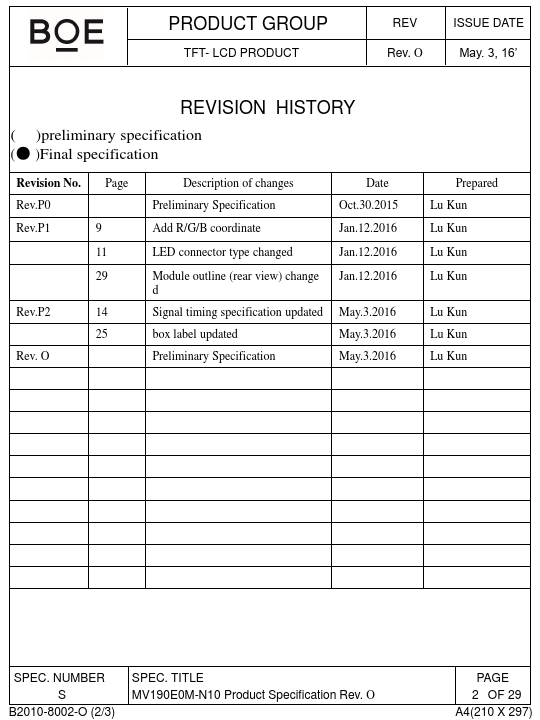

3, 16’ REVISION HISTORY ( )preliminary specification

MV190E0M-N10 Features

* LVDS Interface with 2 pixel / clock

* High-speed response

* 6-bit (Hi-FRC) color depth, display 16. 7M colors

* Incorporated edge type back-light (LED)

* NTSC 72%

* High luminance and contrast ratio, low reflection and wide viewing angle

* DE (Data Enable) only

* Ro
