EV101WXM-N10 - TFT LCD

BOE

📥 Download Datasheet

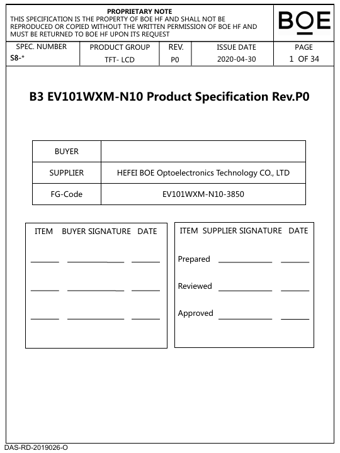

EV101WXM-N10 Datasheet Preview — Preview of EV101WXM-N10 PDF

Datasheet Details

Part number	EV101WXM-N10
Manufacturer	BOE
File Size	1.35 MB
Description	TFT LCD
Datasheet	EV101WXM-N10-BOE.pdf

EV101WXM-N10 Product details

Description

OF CHANGES Initial Release DATE 2019-04-30 PREPARED DAS-RD-2019026-O PRODUCT GROUP REV ISSUE DATE TFT- LCD PRODUCT P0 2020-04-30 SPEC.NUMBER SPEC.TITLE S8- B3 EV101WXM-N10 Product Specification Contents No.Items 1.0 General Description 2.0 Absolute Maximum Ratings 3.0 Electrical Specifications 4.0 Optical Specifications 5.0 Reliability Test 6.0 Packing Information 7.0 Product Label 8.0 Handling & Cautions 9.0 Appendix PAGE 3 OF 34 Page 4 6 7 18 23 24 26 27 33

Features

l 1 Port LVDS Interface Input; l 6+2bit color depth, display 16.2M colors l Thin and light weight l High luminance and contrast ratio, low reflection and wide viewing angle l RoHS compliant DAS-RD-2019026-O.
