DV215FHM-R01 - TFT LCD

BOE

📥 Download Datasheet

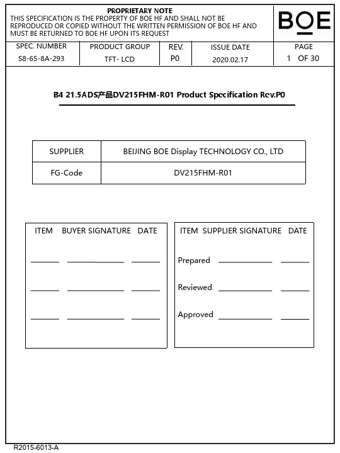

DV215FHM-R01 Datasheet Preview — Preview of DV215FHM-R01 PDF

Datasheet Details

Part number	DV215FHM-R01
Manufacturer	BOE
File Size	2.51 MB
Description	TFT LCD
Datasheet	DV215FHM-R01-BOE.pdf

DV215FHM-R01 Product details

Description

OF CHANGES DATE Initial Release 2020.02.17 FINAL 2020.12.17 PREPARED YU linhai YU linhai SPEC.NUMBER S8-65-8A-293 B2006-5006-O (2/3) SPEC TITLE DV215FHM-R01 Product Specification PAGE 2 OF 30 A4(210 X 297) PRODUCT GROUP TFT LCD PRODUCT Contents No.1.0 General Description Items 2.0 Absolute Maximum ratings 3.0 Electrical specifications.4.0 Interface Connection 5.0 Signal Timing Specifications 6.0 Power Sequence 7.0 Optical specifications.8.0 Mechanical Characteristics 9.0

Features

LVDS Interface with 2 pixel / clock.
High-speed response.
0.5t Glass.
6-bit (Hi-FRC) color depth, display 16. 7M colors.
Incorporated edge type back-light (One Light Bar).
High luminance and contrast ratio, low reflection and wide viewing angle.
DE (Data Enable) only.
RoHS/Halogen Free.
Gamma Correction.
Landscape and Portrait Display.
High TNI 105℃ SPEC. NUMBER S8-65-8A-293 B2006-5006-O (3/3) SPEC TITLE DV215FHM-R01 Product Specification.
