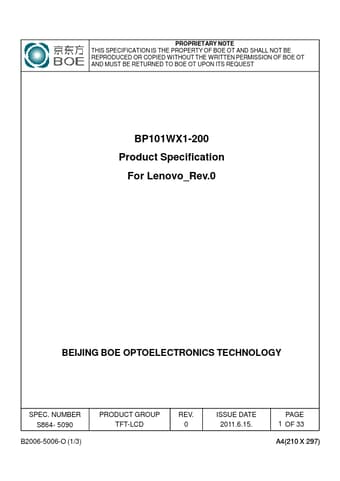

BP101WX1-200 Datasheet Preview — Preview of BP101WX1-200 PDF

Datasheet Details

Part number	BP101WX1-200
Manufacturer	BOE
File Size	1.50 MB
Description	TFT LCD
Datasheet	BP101WX1-200-BOE.pdf

BP101WX1-200 Product details

Description

OF CHANGES Initial Release DATE 2011.06.15. PREPARED Cai Site SPEC.NUMBER S864-5090 B2006-5006-O (2/3) SPEC TITLE BP101WX1-200 Product Specification PAGE 2 OF 33 A4(210 X 297) PRODUCT GROUP TFT LCD PRODUCT REV 0 ISSUE DATE 2011.6.15. Contents No.Items 1.0 General Description 2.0 Absolute Maximum ratings 3.0 Electrical specifications.4.0 Optical specifications.5.0 Interface Connection 6.0 Signal Timing Specification 7.0 Signal Timing waveforms 8.0 Input Signals, Display Colors & Gray

Features

l 1 Channel LVDS Interface with 1 pixel / clock l Thin and light weight l Display 16.7M colors (Hi FRC) l High luminance and contrast ratio, low reflection and wide viewing angle l DE (Data Enable) signal mode l 3.3V for Logic Power and 3.7V for LED Back Light Power l RoHS Compliant SPEC. NUMBER S864-5090 B2006-5006-O (3/3) SPEC TITLE BP101WX1-200 Product Specification PAGE 4 OF 33 A4(210 X 297).
