STBV45D, Silicon NPN transistor

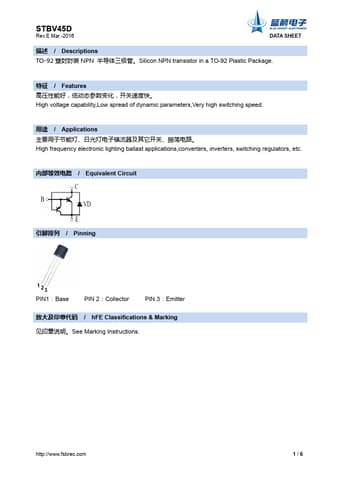

STBV45D Rev.E Mar.-2016 DATA SHEET / Descriptions TO-92 NPN 。Silicon NPN transistor in a TO-92 Plastic Package.
/

Applications

* 、、。 High frequency electronic lighting ballast applications,converters, inverters, switching regulators, etc. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 。See Marking Instructions. http://www. fsbrec. com 1/6 STBV45D Rev. E Ma
