S8550M - Silicon PNP transistor

BLUE ROCKET ELECTRONICS

S8550M Description

S8550M Rev.E Mar.-2016 DATA SHEET / .
SOT-23 PNP 。Silicon PNP transistor in a SOT-23 Plastic Package.

S8550M Applications

* 。 Power amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range B 85～160 C 120～200 Marking HY4B HY4C D 160～300 HY4D http://www. fsbrec. com 1/6 S8550M Rev. E Mar. -2016

📥 Download Datasheet

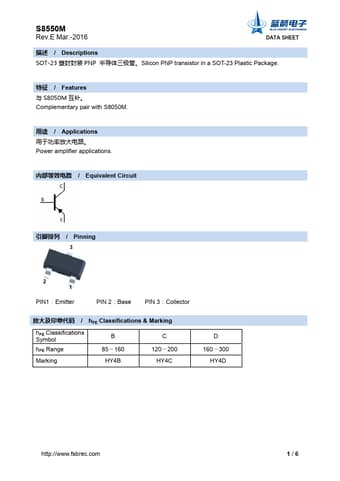

S8550M Datasheet Preview — Preview of S8550M PDF

Datasheet Details

Part number: S8550M
Manufacturer: BLUE ROCKET ELECTRONICS
File Size: 659.10 KB
Datasheet: S8550M-BLUEROCKETELECTRONICS.pdf
Description: Silicon PNP transistor
