KTA1274 - Silicon PNP transistor

Description

TO-92LM PNP 。Silicon PNP transistor in a TO-92LM Plastic Package.

Features

  • KTC3227 。 Complementary pair with KTC3227. /.

📥 Download Datasheet

Datasheet Details

Part number KTA1274
Manufacturer BLUE ROCKET ELECTRONICS
File Size 745.22 KB
Description Silicon PNP transistor
Datasheet download datasheet KTA1274 Datasheet

📁 Similar Datasheet

  • KTA1274 - PNP Transistor (JCET)
  • KTA1274 - EPITAXIAL PLANAR PNP TRANSISTOR (KEC)
  • KTA1270 - EPITAXIAL PLANAR PNP TRANSISTOR (KEC)
  • KTA1270 - PNP Plastic Encapsulated Transistor (SeCoS)
  • KTA1270 - PNP Transistors (Kexin)
  • KTA1270-O - PNP Plastic-Encapsulate Transistors (MCC)
  • KTA1270-Y - PNP Plastic-Encapsulate Transistors (MCC)
  • KTA1271 - EPITAXIAL PLANAR PNP TRANSISTOR (KEC)
  • KTA1271 - PNP Plastic Encapsulated Transistor (SeCoS)
  • KTA1271 - PNP Transistor (JCET)
Other Datasheets by BLUE ROCKET ELECTRONICS

Full PDF Text Transcription

Click to expand full text

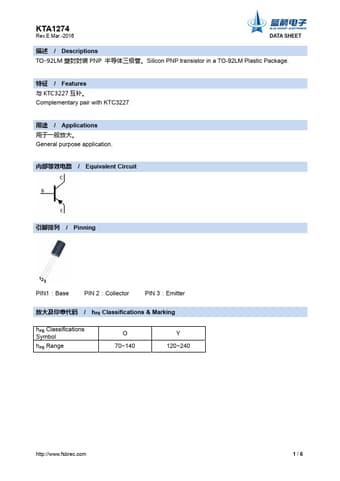

KTA1274 Rev.E Mar.-2016 DATA SHEET / Descriptions TO-92LM PNP 。Silicon PNP transistor in a TO-92LM Plastic Package. / Features KTC3227 。 Complementary pair with KTC3227. / Applications 。 General purpose application. / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 70~140 Y 120~240 http://www.fsbrec.com 1/6 KTA1274 Rev.E Mar.-2016 / Absolute Maximum Ratings(Ta=25℃) Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current - Continuous Emitter Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC IE PC Tj Tstg DATA SHEET Rating -80 -80 -5.
