BL6305DN, BL6305 - 2.6 Watt Mono Filter-Free Class-D Audio Power Amplifier

BELLING

Datasheet Details

Part number	BL6305DN, BL6305
Manufacturer	BELLING
File Size	253.63 KB
Description	2.6 Watt Mono Filter-Free Class-D Audio Power Amplifier
Datasheet	BL6305-BELLING.pdf
Note	This datasheet PDF includes multiple part numbers: BL6305DN, BL6305. Please refer to the document for exact specifications by model.

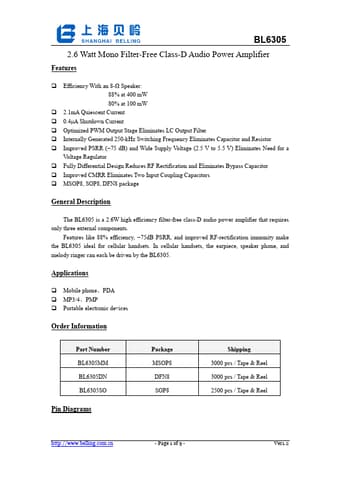

The BL6305 is a 2.6W high efficiency filter-free class-D audio power amplifier that requires only three external components.

Efficiency With an 8-Ω Speaker: 88% at 400 mW 80% at 100 mW 2.1mA Quiescent Current 0.4µA Shutdown Current Optimized PWM Output Stage Eliminates LC Output Filter Internally Generated 250-kHz Switching Frequency Eliminates Capacitor and Resistor Improved PSRR (.
75 dB) and Wide Supply Voltage (2.5 V to 5.5 V) Eliminates Need for a Voltage Regulator Fully Differential Design Reduces RF Rectification and Eliminates Bypass Capacitor Improved CMRR Eliminates Two Input Coupling Capacitors MSOP8.
