AP3105L, AP3105 High Voltage Green Mode PWM Controller

AP3105L Description

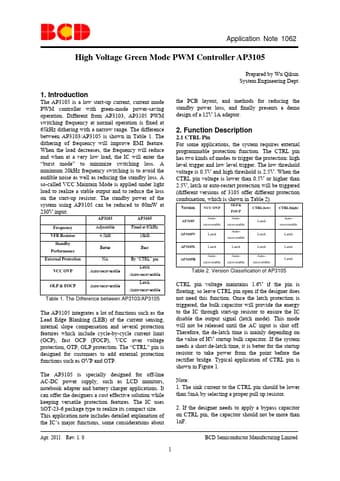

Application Note 1062 High Voltage Green Mode PWM Controller AP3105 Prepared by Wu Qikun System Engineering Dept.1.Introduction The AP3105 is a lo.
2.

AP3105L Features

* which include cycle-by-cycle current limit (OCP), fast OCP (FOCP), VCC over voltage protection, OTP, OLP protection. The “CTRL” pin is designed for customers to add external protection functions such as OVP and OTP. The AP3105 is specially designed for off-line AC-DC power supply, such as LCD monito

AP3105L Applications

* the system requires external programmable protection function. The CTRL pin has two kinds of modes to trigger the protection: high level trigger and low level trigger. The low threshold voltage is 0.5V and high threshold is 2.5V. When the CTRL pin voltage is lower than 0.5V or higher than 2.5V, lat
