AP2132A Peak 3A CMOS LDO Regulator

AP2132A Description

Peak 3A CMOS LDO Regulator with Enable and Power Good Data Sheet AP2132A General .
The AP2132A series are positive voltage regulator ICs fabricated by CMOS process.

AP2132A Features

* of large current, low dropout voltage, high output voltage accuracy and low input voltage. The AP2132A provide a power good (PG) signal to indicate if the voltage level of VOUT reaches 92% of its rating value. And it operates with a VIN as low as 1.4V and VCTRL voltage 5V with output voltage program

AP2132A Applications

* Notebook Mar. 2012 Rev 1.0 PSOP-8 Figure 1. Package Type of AP2132A BCD Semiconductor Manufacturing Limited 1 Peak 3A CMOS LDO Regulator with Enable and Power Good Pin Configuration MP Package (PSOP-8) Data Sheet AP2132A PG 1 EN 2 VIN 3 VCTRL 4 8 GND 7 ADJ 6 VOUT 5 NC Figure 2. Pi

📥 Download Datasheet

Preview of AP2132A PDF

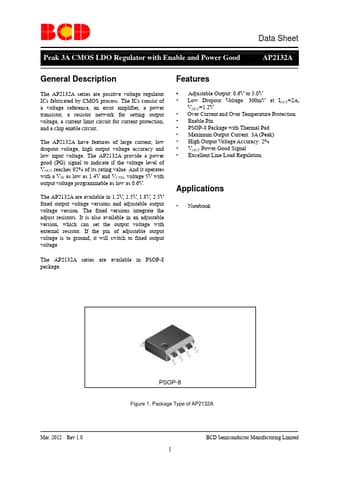

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP2132A
Manufacturer
BCD
File Size
515.56 KB
Datasheet
AP2132A-BCD.pdf
Description
Peak 3A CMOS LDO Regulator
