AX5201 - Step-up PWM DC/DC Converter

Description

The AX5201 is high efficient step-up DC/DC converter.

Large output current is possible having a built in internal N channel MOSFET, and using an external coil and diode.

Features

  • - Input voltage：3V to 20V - Output voltage：3.3V to 32V - Duty ratio：0% to 85% PWM control - Oscillation frequency：500KHz. Enable and Thermal Shutdown function. Internal Current limit. Built-in N-channel MOSFET SOP-8L with Exposed pad Pb-Free package. http://www. DataSheet4U. com/  BLOCK.

📥 Download Datasheet

Datasheet Details

Part number AX5201
Manufacturer Axelite
File Size 709.43 KB
Description Step-up PWM DC/DC Converter
Datasheet download datasheet AX5201 Datasheet

📁 Similar Datasheet

  • AX5201 - Boost Drive Solution (GOFO tech)
  • AX5243 - Advanced High Performance ASK and FSK Narrow-band Transceiver (ON Semiconductor)
  • AX50 - Full Wave Rectifying Valve (Philips)
  • AX50 - Full Wave Gas Filled Rectifying Valve (ETC)
  • AX500 - Dual Channel Digital Motor Controller (Roboteq)
  • AX500 - Axcelerator Family FPGAs (Actel)
  • AX5031 - Advanced multi-channel single chip UHF transmitter (AXSEM)
  • AX5031 - Advanced multi-channel single chip UHF transmitter (ON Semiconductor)
  • AX5042 - Advanced multi-channel single chip UHF transceiver (AXSEM)
  • AX50424 - Advanced multi-channel single chip UHF receiver (AXSEM)
Other Datasheets by Axelite
  • AX5202 - Step-up PWM DC/DC Converter
  • AX5203 - Step-up PWM DC/DC Converter
  • AX5204 - Step-up PWM DC/DC Converter
  • AX5101A - Step-up PWM DC/DC Converter
  • AX5103A - Step-up PWM DC/DC Converter
  • AX5104 - Step-up PWM DC/DC Converter
  • AX5110 - Step-up PFM DC/DC Converter
  • AX5301 - PWM Step-up Controller

Full PDF Text Transcription

Click to expand full text

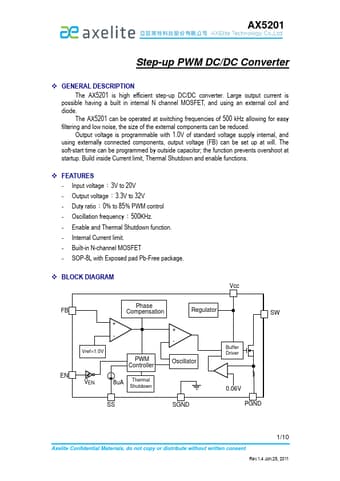

AX5201 Step-up PWM DC/DC Converter  GENERAL DESCRIPTION The AX5201 is high efficient step-up DC/DC converter. Large output current is possible having a built in internal N channel MOSFET, and using an external coil and diode. The AX5201 can be operated at switching frequencies of 500 kHz allowing for easy filtering and low noise, the size of the external components can be reduced. Output voltage is programmable with 1.0V of standard voltage supply internal, and using externally connected components, output voltage (FB) can be set up at will. The soft-start time can be programmed by outside capacitor; the function prevents overshoot at startup. Build inside Current limit, Thermal Shutdown and enable functions.  FEATURES - Input voltage：3V to 20V - Output voltage：3.
