AW2026 - 3-Channel Breathing LED Driver

Description

l 3-channel constant current LED drivers 4- level IMAX selections: 3/6/12/25.5mA

driver.

The max output current is 4-level selectable among 3mA, 6mA, 12mA and 25.5mA.

📥 Download Datasheet

Datasheet Details

Part number AW2026
Manufacturer Awinic
File Size 2.08 MB
Description 3-Channel Breathing LED Driver
Datasheet download datasheet AW2026 Datasheet

📁 Similar Datasheet

Other Datasheets by Awinic
  • AW2023 - 3-Channel LED Driver
  • AW2027 - 3-Channel LED Driver
  • AW2028H - 3-channel LED Driver
  • AW2013 - 3-way LED breathing light controller
  • AW2015 - 3-Channel LED Driver
  • AW2015A - 3-Channel LED Driver
  • AW2083 - 4-wire resistive touch screen controller
  • AW22118 - Smart 18-LED Driving SoC

Full PDF Text Transcription

Click to expand full text

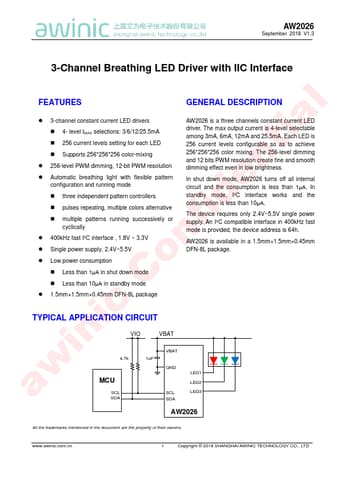

AW2026 September 2018 V1.3 3-Channel Breathing LED Driver with IIC Interface FEATURES GENERAL DESCRIPTION l  3-channel constant current LED drivers  4- level IMAX selections: 3/6/12/25.5mA  256 current levels setting for each LED tia AW2026 is a three channels constant current LED driver. The max output current is 4-level selectable among 3mA, 6mA, 12mA and 25.5mA. Each LED is 256 current levels configurable so as to achieve  Supports 256*256*256 color-mixing  256-level PWM dimming, 12-bit PWM resolution  Automatic breathing light with flexible pattern configuration and running mode  three independent pattern controllers  pulses repeating, multiple colors alternative  multiple patterns running successively or cyclically  400kHz fast I2C interface , 1.8V ~ 3.
