AL4CA05, AL4CA01 - (AL4CAxx) 512/ 1K/ 2K/ 4K/ 8K x 9 Asynchronous FIFOs

AverLogic Technologies

AL4CA05 Datasheet Preview — This datasheet PDF includes multiple part numbers: AL4CA05, AL4CA01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AL4CA05, AL4CA01
Manufacturer	AverLogic Technologies
File Size	87.42 KB
Description	(AL4CAxx) 512/ 1K/ 2K/ 4K/ 8K x 9 Asynchronous FIFOs
Datasheet	AL4CA01_AverLogicTechnologies.pdf
Note	This datasheet PDF includes multiple part numbers: AL4CA05, AL4CA01. Please refer to the document for exact specifications by model.

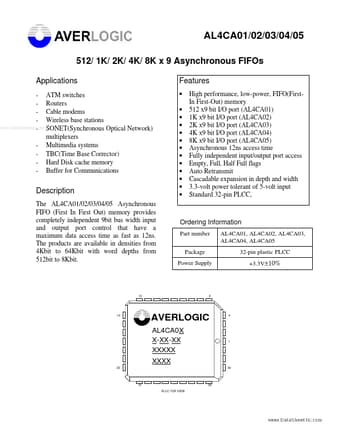

AL4CA05 Product details

Description

The AL4CA01/02/03/04/05 Asynchronous FIFO (First In First Out) memory provides completely independent 9bit bus width input and output port control that have a maximum data access time as fast as 12ns.

Features

High performance, low-power, FIFO(FirstIn First-Out) memory 512 x9 bit I/O port (AL4CA01) 1K x9 bit I/O port (AL4CA02) 2K x9 bit I/O port (AL4CA03) 4K x9 bit I/O port (AL4CA04) 8K x9 bit I/O port (AL4CA05) Asynchronous 12ns access time Fully independent input/output port access Empty, Full, Half Full flags Auto Retransmit Cascadable expansion in depth and width 3.3-vo.
