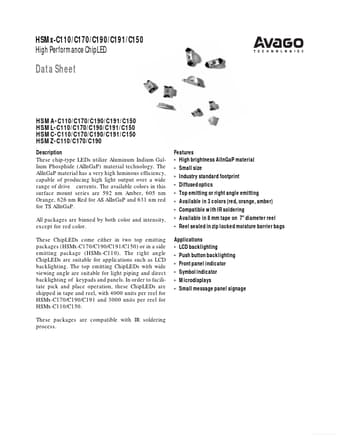

HSMZ-C190, HSMx-C110 - (HSMx-C110 - HSMx-C191) High Performance ChipLED

Avago

Datasheet Details

Part number	HSMZ-C190, HSMx-C110
Manufacturer	Avago
File Size	444.00 KB
Description	(HSMx-C110 - HSMx-C191) High Performance ChipLED
Datasheet	HSMx-C110-Avago.pdf
Note	This datasheet PDF includes multiple part numbers: HSMZ-C190, HSMx-C110. Please refer to the document for exact specifications by model.

These chip-type LEDs utilize Aluminum Indium Gallium Phosphide (AlInGaP) material technology.

High brightness AlInGaP material.
Small size.
Industry standard footprint.
Diffused optics.
Top emitting or right angle emitting Available in 3 colors (red, orange, amber) Compatible with IR soldering Available in 8 mm tape on 7" diameter reel Reel sealed in zip locked moisture barrier bags.
