HFCT-53D5 1 x 9 Fiber Optic Transceivers

Avago

HFCT-53D5 Description

HFBR-53D5 Family, 850 nm VCSEL HFCT-53D5 Family, 1300 nm FP Laser 1 x 9 Fiber Optic Transceivers for Gigabit Ethernet Data Sheet .
The HFBR/HFCT-53D5 transceiver from Avago Technologies allows the system designer to implement a range of solutions for multimode and single mode Giga.

HFCT-53D5 Features

* Compliant with Specifications for IEEE- 802.3z Gigabit Ethernet
* Industry Standard Mezzanine Height 1 x 9 Package Style with Integral Duplex SC Connector
* Performance HFBR-53D5: 220 m with 62.5/125 mm MMF 500 m with 50/125 mm MMF HFCT-53D5: 550 m with 62.5/125 mm MMF 550

HFCT-53D5 Applications

* The overall Avago Technologies transceiver product consists of three sections: the transmitter and receiver optical subassemblies, an electrical subassembly, and the package housing which incorporates a duplex SC connector receptacle. Transmitter Section The transmitter section of the HFBR-53D5 con

📥 Download Datasheet

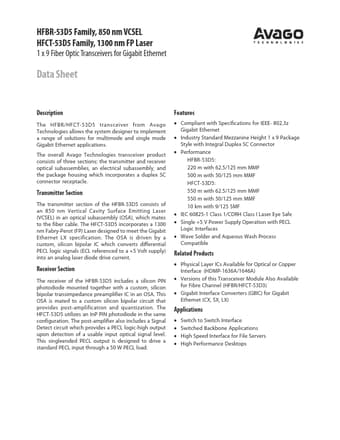

HFCT-53D5 Datasheet Preview — Preview of HFCT-53D5 PDF

Datasheet Details

Part number: HFCT-53D5
Manufacturer: Avago
File Size: 159.47 KB
Datasheet: HFCT-53D5-Avago.pdf
Description: 1 x 9 Fiber Optic Transceivers
