HEDS-9100, HEDS-9000 Two Channel Optical Incremental Encoder Modules

HEDS-9100 Description

HEDS-9000/9100 Two Channel Optical Incremental Encoder Modules Data Sheet .
The HEDS-9000 and the HEDS-9100 series are high performance, low cost, optical incremental encoder modules.

HEDS-9100 Features

* High performance
* High resolution
* Low cost
* Easy to mount
* No signal adjustment required
* Small size
* -40°C to 100 °C operating temperature
* Two channel quadrature output
* TTL compatible
* Single 5

HEDS-9100 Applications

* The HEDS-9000 and 9100 provide sophisticated motion detection at a low cost, making them ideal for high volume applications. Typical applica­tions include printers, plotters, tape drives, and factory automation equipment. Note: Avago Technologies encoders are not recommended for use in safety critic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HEDS-9100, HEDS-9000. Please refer to the document for exact specifications by model.

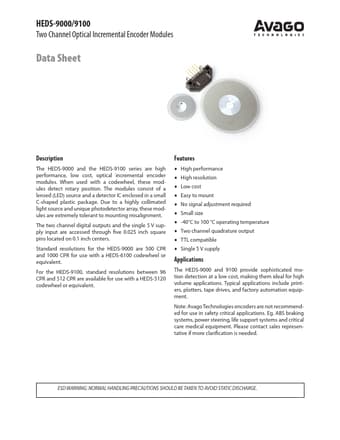

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HEDS-9100, HEDS-9000
Manufacturer
Avago
File Size
389.09 KB
Datasheet
HEDS-9000-Avago.pdf
Description
Two Channel Optical Incremental Encoder Modules
Note
This datasheet PDF includes multiple part numbers: HEDS-9100, HEDS-9000.
Please refer to the document for exact specifications by model.
