HEDM-6120, HEDS-5120 Two and Three Channel Codewheels

Avago

Description

HEDS-51X0/61X0 Series, HEDG-512X/612X Series HEDM-512X/61XX Series Two and Three Channel Codewheels for use with Avago Technologies Optical Encoder Mo.
Avago Technologies offers a wide variety of codewheels for use with Avago Technologies’ HEDS-9000, HEDS9100, HEDS-9040, and HEDS-9140 series Encoder M.

📥 Download Datasheet

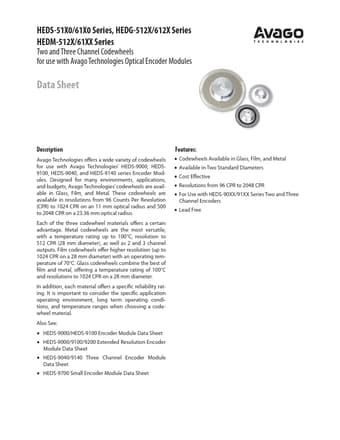

HEDM-6120 Datasheet Preview — This datasheet PDF includes multiple part numbers: HEDM-6120, HEDS-5120. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HEDM-6120, HEDS-5120
Manufacturer: Avago
File Size: 299.29 KB
Datasheet: HEDS-5120-Avago.pdf
Description: Two and Three Channel Codewheels
Note: This datasheet PDF includes multiple part numbers: HEDM-6120, HEDS-5120.
Please refer to the document for exact specifications by model.

Features

* Codewheels Available in Glass, Film, and Metal
* Available in Two Standard Diameters
* Cost Effective
* Resolutions from 96 CPR to 2048 CPR
* For Use with HEDS-90XX/91XX Series Two and Three Channel Encoders
* Lead Free Absolute Maximum Ratings It
