HCPL-261A Optocouplers

HCPL-261A Description

HCPL-261A, HCPL-061A, HCPL-263A, HCPL-063A HCPL-261N, HCPL-061N, HCPL-263N, HCPL-063N HCMOS Compatible, High CMR, 10 MBd Optocouplers Data Sheet Lea.
Features The HCPL-261A family of optically coupled gates shown on this data sheet provide all the benefits of the industry standard 6N137 family wit.

HCPL-261A Features

* The HCPL-261A family of optically coupled gates shown on this data sheet provide all the benefits of the industry standard 6N137 family with the added benefit of HCMOS compatible input cur­rent. This allows direct interface to all common circuit topologies without additional LED buffer or drive com

📥 Download Datasheet

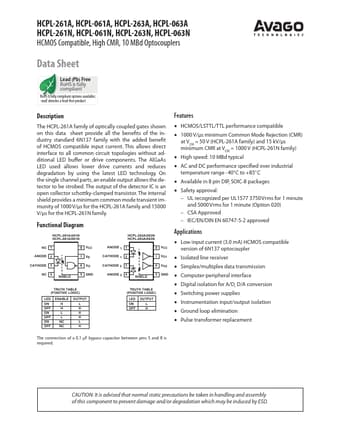

Preview of HCPL-261A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCPL-261A
Manufacturer
Avago
File Size
476.70 KB
Datasheet
HCPL-261A-Avago.pdf
Description
Optocouplers
