ACFF-1024 ISM Bandpass Filter

ACFF-1024 Description

ACFF-1024 ISM Bandpass Filter (2401 * 2482 MHz) Data Sheet .
The Avago ACFF-1024 is a miniaturized Bandpass Filter designed for use in the 2.

ACFF-1024 Features

* 50 Ω Input/Output
* No external matching required
* Low Insertion Loss, High Interference Rejection - Enables concurrent use of other 2.5 GHz Bands
* Subminiature Size - 1.1 x 1.4 mm Footprint - 0.80 mm Max Height
* High Power Rating - +27 dBm Abs Ma

ACFF-1024 Applications

* that coexist with other wireless standards, such as 2.5 GHz WiMAX, PCS, and LTE Bands 7 and 40, without performance degradations due to interference. The ACFF-1024 is designed with Avago Technologies’ innovative Film Bulk Acoustic Resonator (FBAR) technology, which makes possible ultra-small, high-Q

📥 Download Datasheet

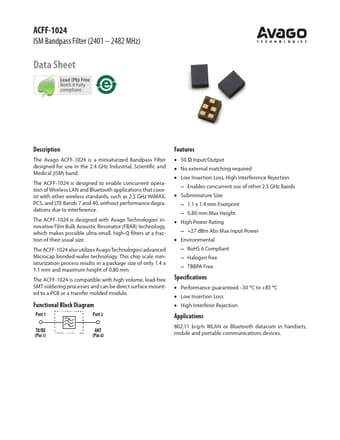

Preview of ACFF-1024 PDF
