ACPL-P302-000E, ACPL-P302 - 0.4 Amp Output Current IGBT Gate Driver Optocouplers

Avago Technologies

The ACPL-P302-000E by Avago Technologies is a 0.4 Amp Output Current IGBT Gate Driver Optocouplers. Below is the official datasheet preview.

📥 Download Datasheet

ACPL-P302-000E 0.4 Amp Output Current IGBT Gate Driver Optocouplers by Avago Technologies - Datasheet Preview — Official preview page of the **ACPL-P302-000E** 0.4 Amp Output Current IGBT Gate Driver Optocouplers datasheet (Avago Technologies).

Datasheet Details

Part number	ACPL-P302-000E, ACPL-P302
Manufacturer	Avago Technologies
File Size	205.63 KB
Description	0.4 Amp Output Current IGBT Gate Driver Optocouplers
Datasheet	ACPL-P302-AvagoTechnologies.pdf
Note	This datasheet PDF includes multiple part numbers: ACPL-P302-000E, ACPL-P302. Please refer to the document for exact specifications by model.

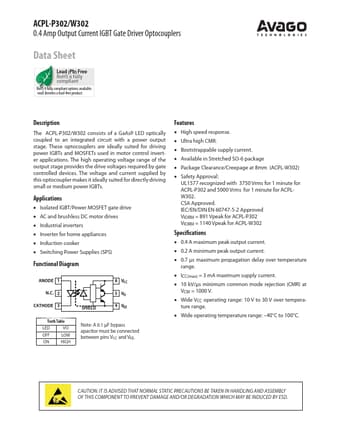

Additional preview pages of the ACPL-P302-000E datasheet.

ACPL-P302-000E Product details

Description

The ACPL-P302/W302 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage.

Features

x High speed response. x Ultra high CMR. x Bootstrappable supply current. x Available in Stretched SO-6 package x Package Clearance/Creepage at 8mm (ACPL-W302) x Safety Approval: UL1577 recognized with 3750 Vrms for 1 minute for ACPL-P302 and 5000 Vrms for 1 minute for ACPLW302. CSA Approved. IEC/EN/DIN EN 60747-5-2 Approved VIORM = 891 Vpeak for ACPL-P302 VIORM = 1140 Vpeak for ACPL-W302.
