AES2500 - Fingerprint Sensor

Name: AES2500
SKU: AES2500-523196

Authen Tec

The AES2500 by Authen Tec is a Fingerprint Sensor. Below is the official datasheet preview.

Datasheet Details

Part number	AES2500
Manufacturer	Authen Tec
File Size	1.89 MB
Description	Fingerprint Sensor
Datasheet	AES2500_AuthenTec.pdf

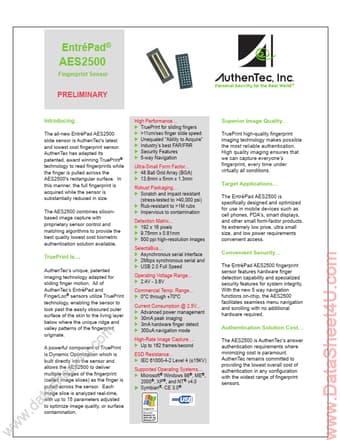

Additional preview pages of the AES2500 datasheet.

u 5-way Navigation Ultra-Small Form Factor… u 48 Ball Grid Array (BGA) u 13.8mm x 5mm x 1.3mm Robust Packaging… u Scratch and impact resistant (stress-tested to >40,000 psi) u Rub-resistant to >1M rubs u Impervious to contamination Detection Matrix… u 192 x 16 pixels u 9.75mm x 0.81mm u 500 ppi high-resolution images SelectaBus… u Asynchronous serial interface u 2Mbps synchronous serial and u USB 2.0 Full Speed Operating Voltage Range… u 2.4V - 3.6V Commercial Temp. Range… u 0°C through +70°C Cu.
